Product descriptions from the supplier

Product Description

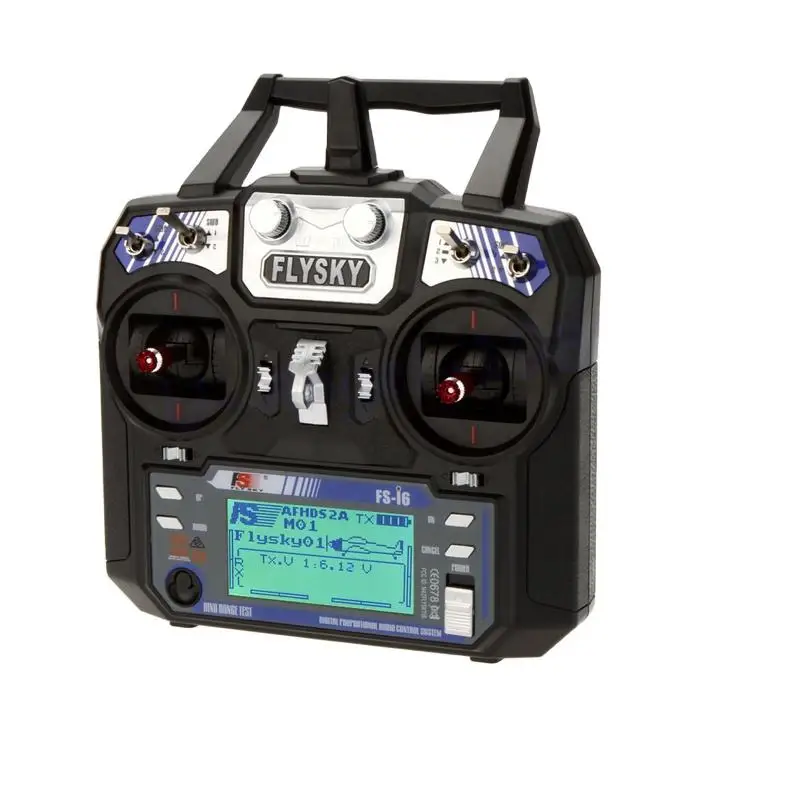

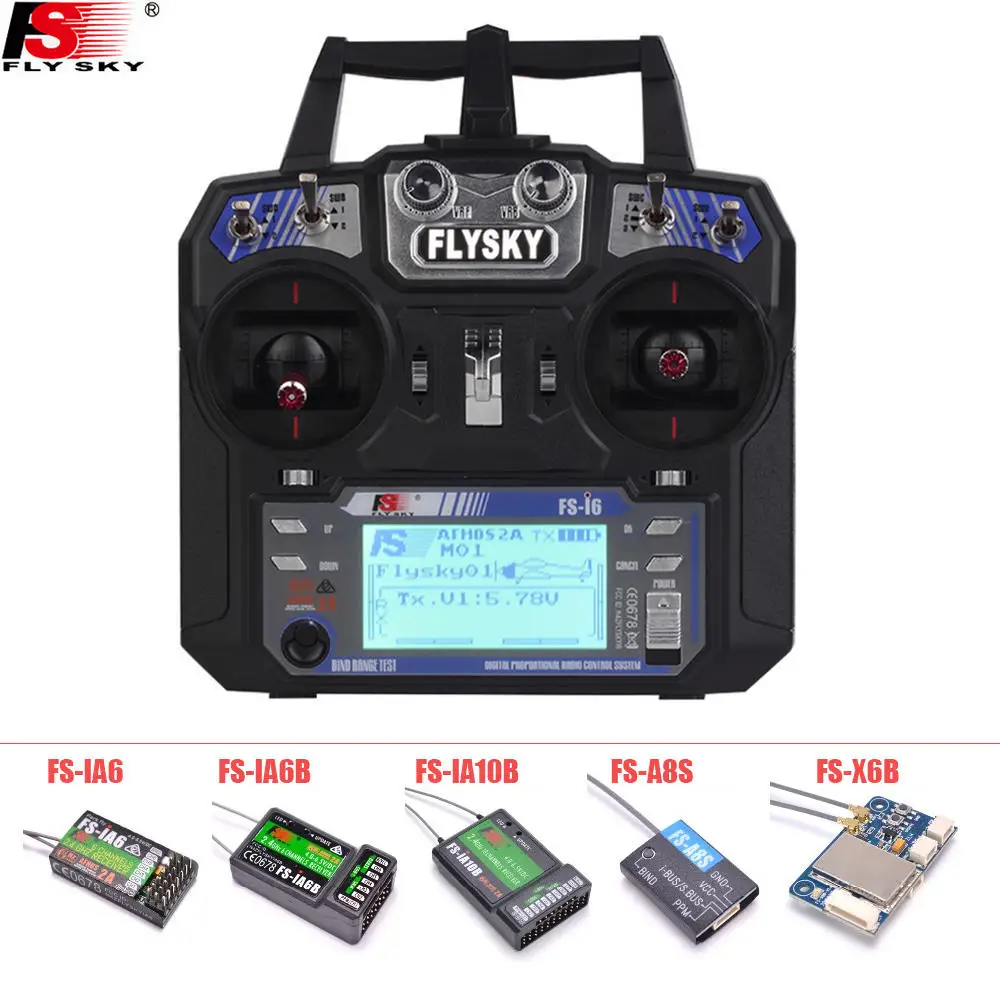

Brand Name: FlySkyItem Name: FS-i6 transmitterChannel: 6Model Type: fixed wing/helicopter/gliderChannel resolution: 1024 stepsLow voltage warning: less than 4.2vANT length: 26 x 2mm( dual antenna)Weight: 392gBattery: 6v 1.5AA x 4(not included)eSize: 174 x 89 x 190 mmColor: blackCertificate: CE ,FCCRF specification:RF Range: 2.405 - 2.475GHzBandwidth: 500khzRF Power: less than 20dBmRF mode: AFHDS 2AModulation type: GFSKRX Sensibility: -105dBmReceiver specification:Channel: 6Model type: fixed wing/helicopter/gliderRF receiver sensitivity: -105dBmModulation: GFSKSystem type: AFHDS2A/AFHDSChannel resolution: 1024 stepsBind port: yesPower port: yes( VCC)Power: 4V -6.5V DCWeight: 6.4gAntenna lenght: 26mmSize: 40.4 x 21.1 x 7.35 mmCertificate: CE ,FCCWorks in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated witha high sensitivity receiver,this radio system guarantees a jamming free long range radio transmissionEach transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from theunique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thusreducing even more power consumption.AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-waycommunication mode and two-way communication mode according to the customer needs.AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce theerror ratio and extend the reliable transmission distance.Item Name: FS-iA6BChannel: 6Frequency Range: 2.4055--2.475GHZBand Width Number: 140Transmitting Power: 20dBmRF Receiver Sensitivity: -105dbm2.4G Mode: The second generation of an enhanced version of the automatic FM digital systemEncoding: GFSKAntenna Length: 26mm * 2 (dual antenna)Input Power: 4.0-6.5V DCDimension: 47 x 26.2 x 15mmWeight: 14.9gPackage WeightColor: Blacki-Bus Interface: YesData Acquisition Interface: YesModel Type: Airplane / Glider / HelicopterCompatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2GWorks in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses16 different channels and 160 different types of hopping algorithm.This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated witha high sensitivity receiver,this radio system guarantees a jamming free long range radio transmissionEach transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from theunique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thusreducing even more power consumption.AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-waycommunication mode and two-way communication mode according to the customer needs.AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce theerror ratio and extend the reliable transmission distance.Compatible Transmitter: Flysky FS-i10,FS-i6,FS-i4,FS-GT2F,FS-GT2E,FS-GT2BFS-iA10B Receiver Specifications:Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4SCompatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2FCompitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4XNote: Failsafe only work on PWM, not in PPM or IBUS.



































Features:

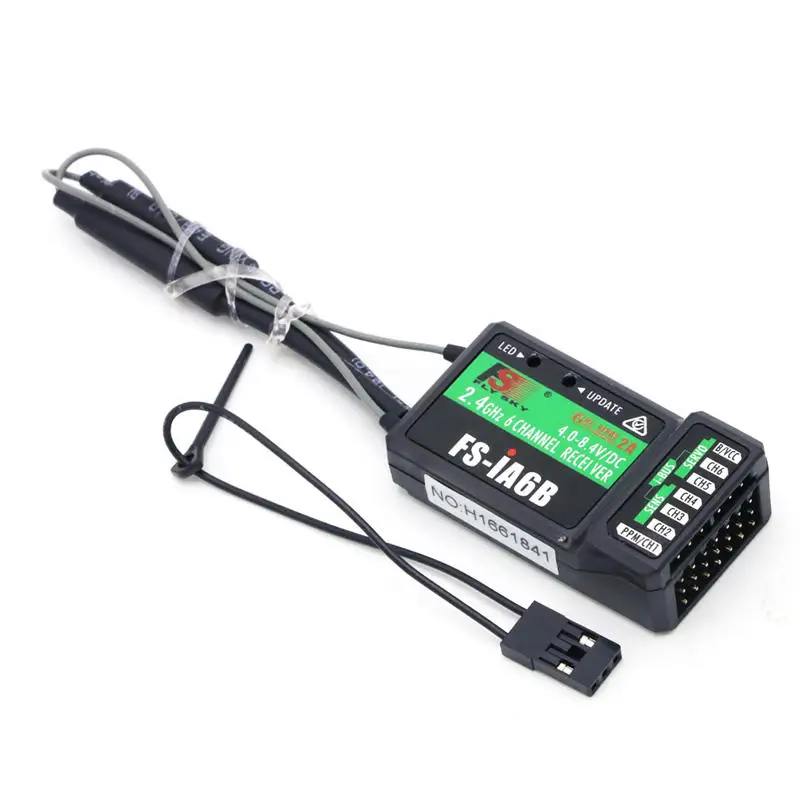

FS-iA6B Specifications:




















Features:




















FS-iA6 Specifications:

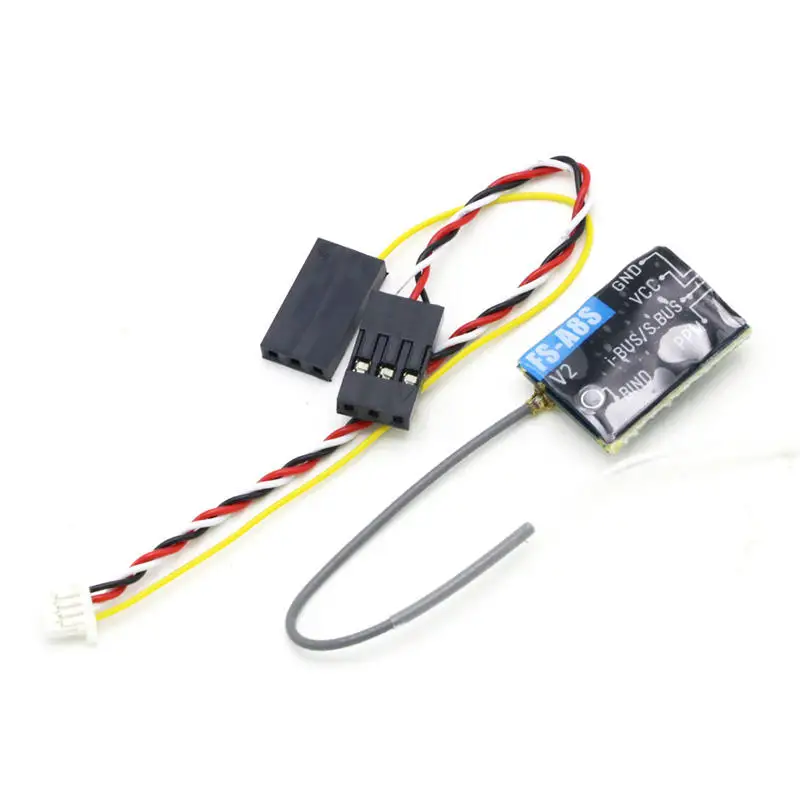

FS-A8S Specifications:
