FPV RC Drone Frame APEX 5inch 7inch Carbon Fiber Frame HD Version Carbon New Fre

FPV RC Drone Frame APEX 5inch 7inch Carbon Fiber Frame HD Version Carbon New Fre

(0) 0 Reviews 0 Orders 0 Wish listed

$18.00

Quantity:

Total price :

(Tax : )

Overview
Reviews

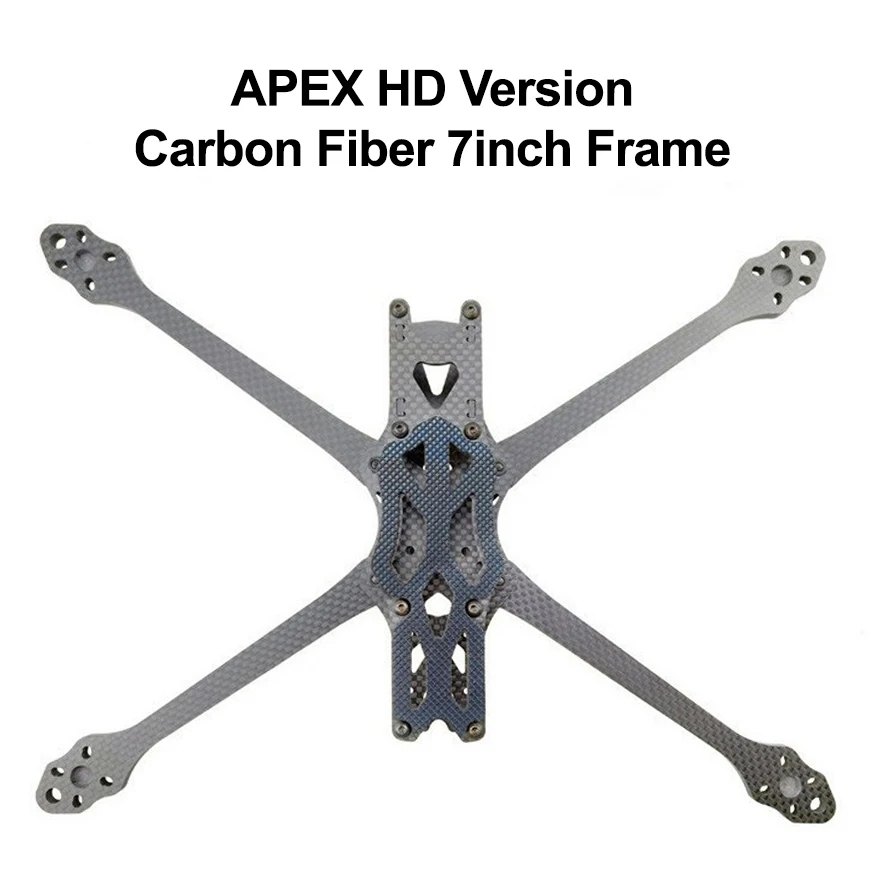

Rack parameters APEX 7 inches

Frame type: H type

Propeller: 7 inches

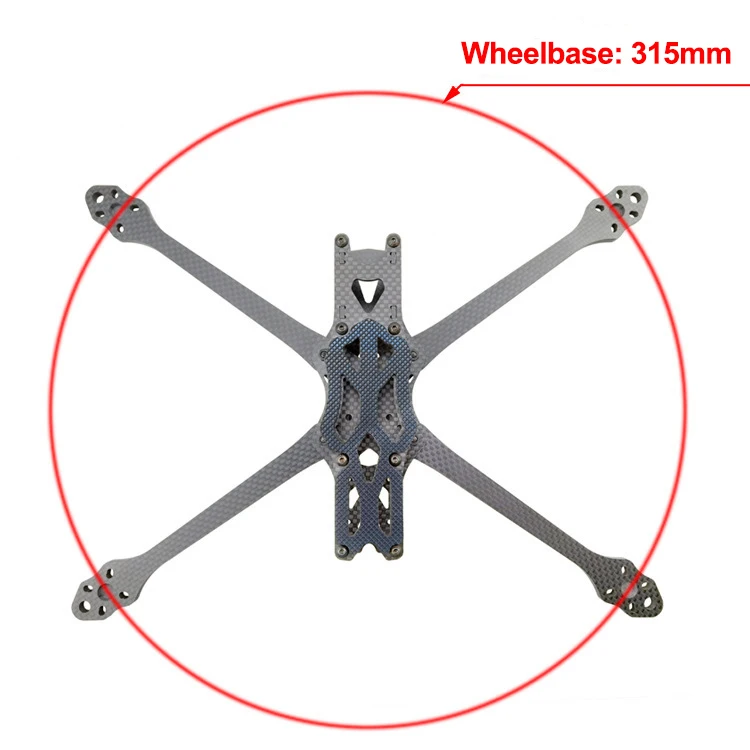

Wheelbase: 315mm

Frame size: length 285* width 210mm

Weight:143g

Thickness of bottom plate: 2.5mm

Thickness of medium plate: 2.0mm

Roof thickness: 2.0mm

Boom thickness: 5.5mm Camera
installation spacing: 22mm

Distance between installation holes of VTX: 20mm. Flight control installation hole spacing: compatible with 30.5mm/20mm.

Recommended configuration

Flight control: F3/F4/F7

Motor: 2204/2205/2306/2307, etc.
Electric adjustment: 20-50A

Battery: 3-6s 1500-2200mah

Rack parameters APEX 5 inches

Frame type: H type
Propeller: 5 inches
Wheelbase: 225mm
Frame size: length 180* width 135mm
Weight:125g
Thickness of bottom plate: 2.5mm
Thickness of medium plate: 2.0mm
Roof thickness: 2.0mm
Boom thickness: 5.5mm Camera
installation spacing: 22mm
Distance between installation holes of VTX:compatible with 30.5mm/20mm

Flight control installation hole spacing: compatible with 30.5mm/20mm.

Recommended configuration

Flight control: RF/KISS/F3/F4/F7
Motor: 2204/2205/03/07/2305/2306/2307, etc.
Electric adjustment: 20-50A
Battery: 3-6s 1500-2200mah
