This module integrates the advanced AI guidance technology and relies on advanced AI algorithm to realize the automatic detection, locking and tracking of static/dynamic targets and precise approach. During the flight, the AI guidance system evaluates and adjusts the flight attitude of the UAV in real time to ensure the accuracy of target tracking and the effective execution of the approach mission.

System Basic Parameters

(1) Dimensions：38mm*38mm*40mm

(2) Weight：55g

(3) Power Consumption：≤6W

(4) Operating Voltage：16-30V（4S-6S)

(5) Interfaces：CVBS/UART/RJ45/USB/SBUS/CRSF

Installation and Usage Instructions

(1) Materials Preparation

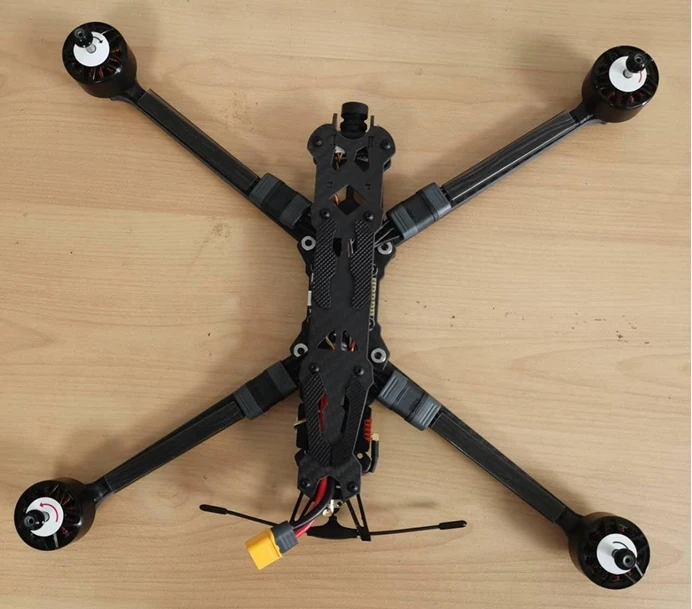

FPV Drone (complete setup including camera, receiver, battery)

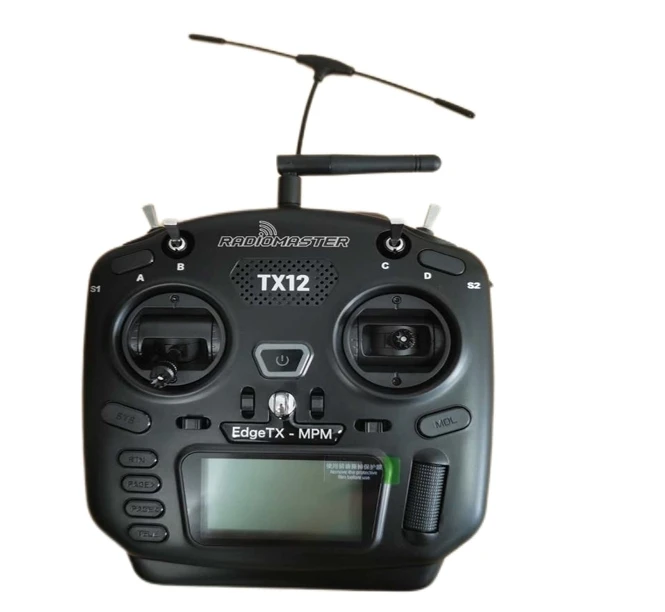

TX12 Remote Controller

Tracker Module

(2) Interface Description

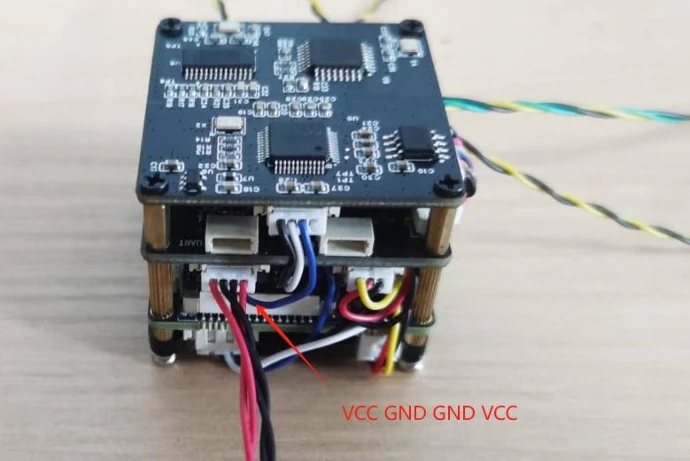

1) Power Port: Supply voltage 16-28V (do not exceed 30V)

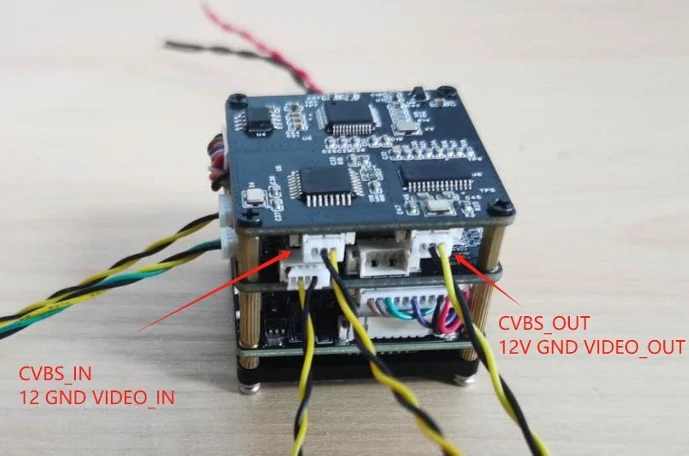

2) CVBS Camera Input/Output

3) CRSFReceiver: For receiving remote control receiver commands (do not power CRSF receiver from 5V)

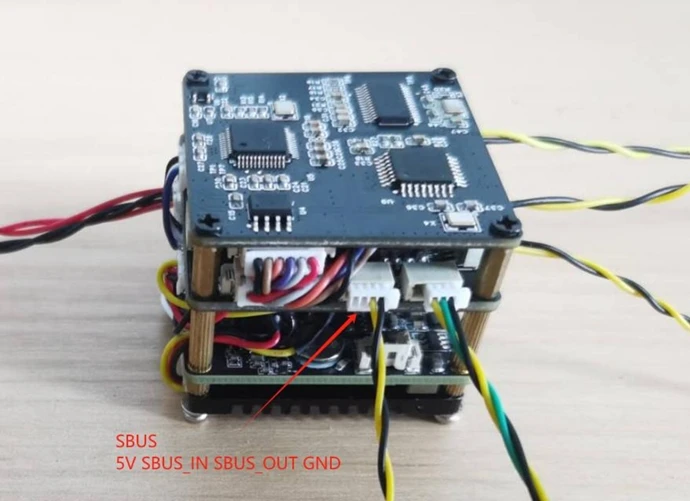

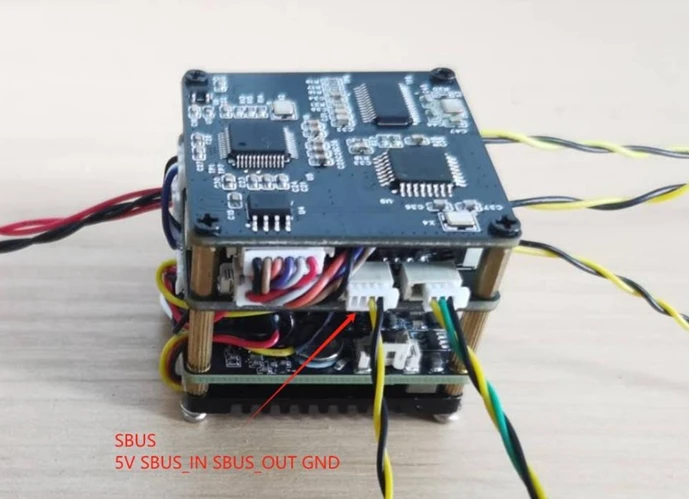

4) SBUS Signal Input；Used for SBUS receivers. The SBUS signal outputs SBUS control signals

5) SBUS Signal Output: Output SBUS signal to flight controller

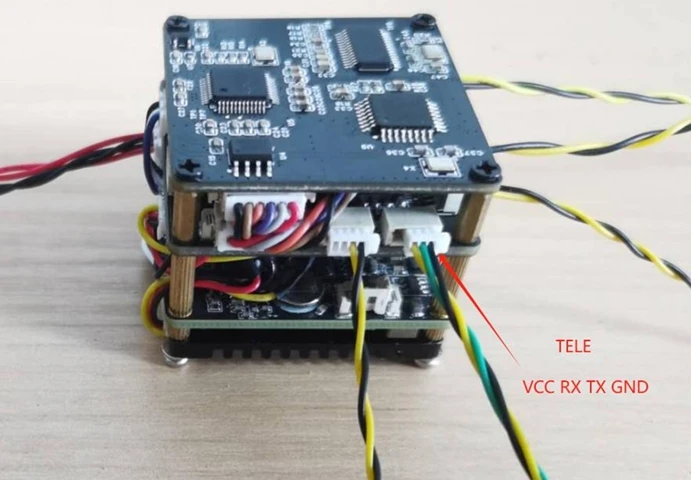

6) TELE Port: Receives information from flight controller

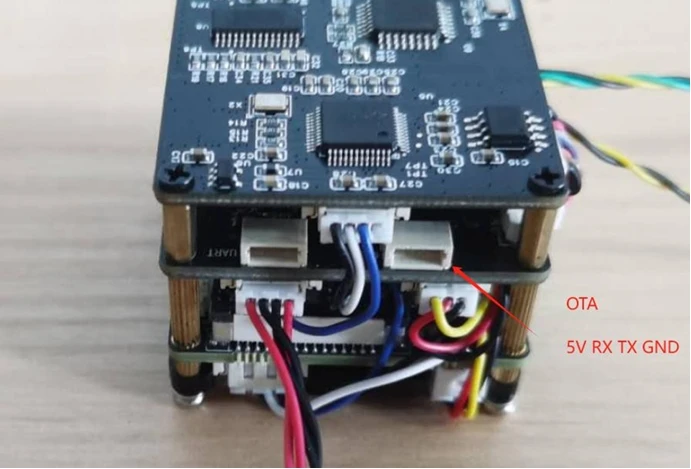

7) OTA Port: For firmware updates

(3) Hardware Wiring

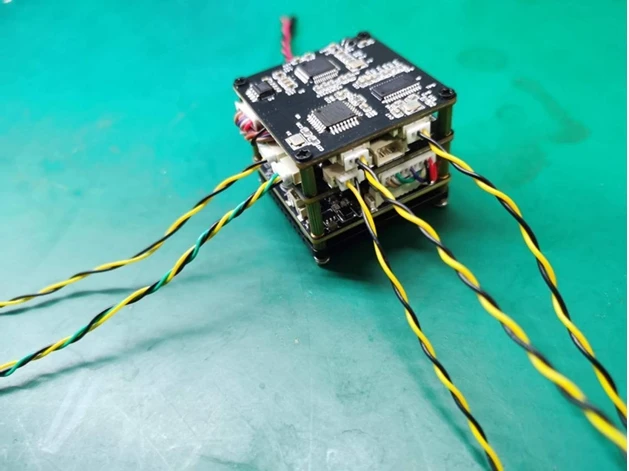

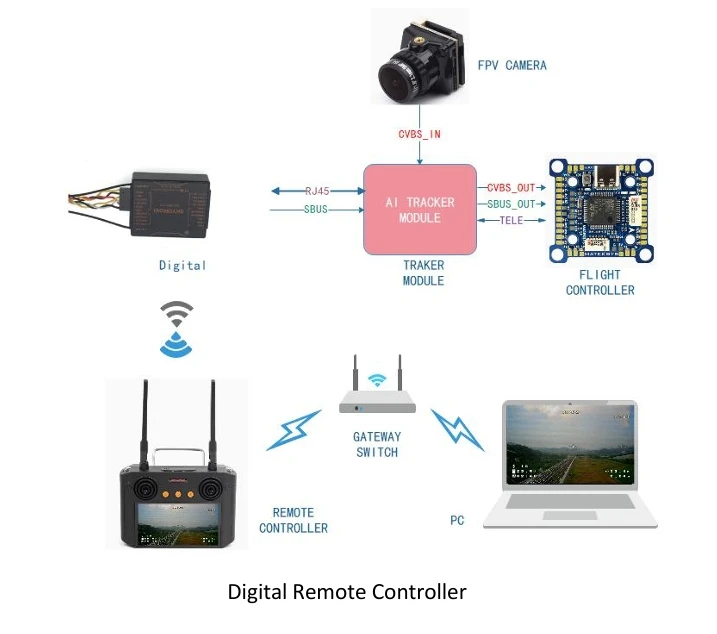

Wiring diagram as follows & Connect hardware as instructed

VTX

Digital Remote Controller

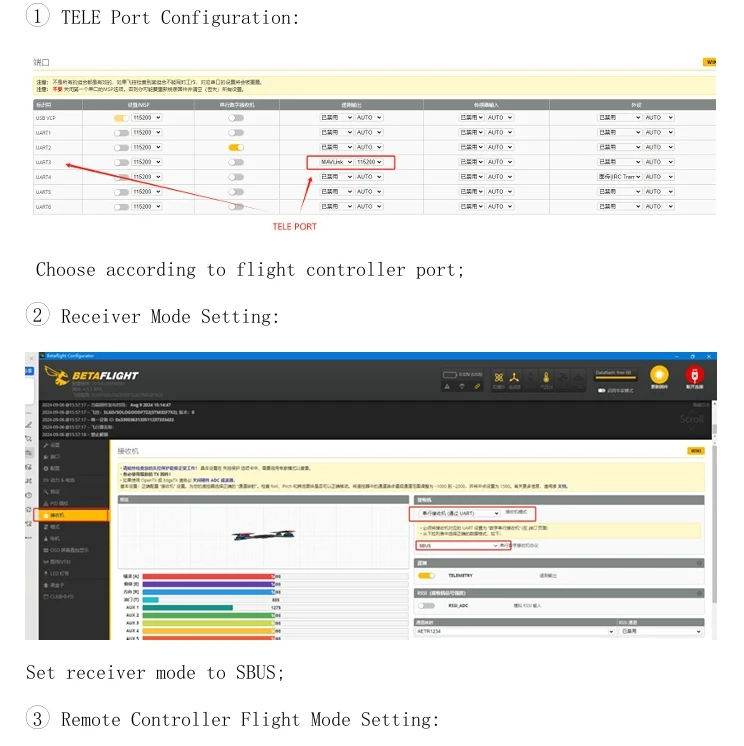

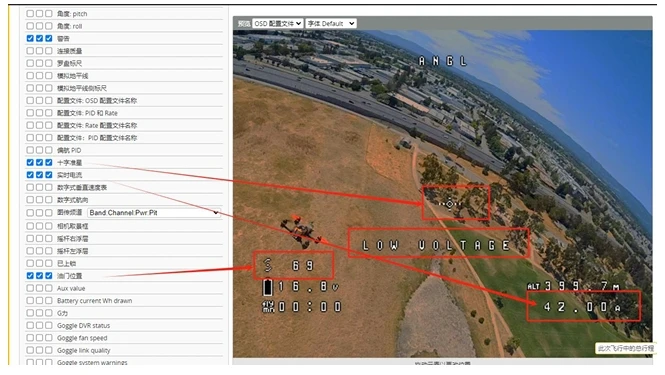

(4) Flight Controller Parameter Settings (using BF firmware as example)

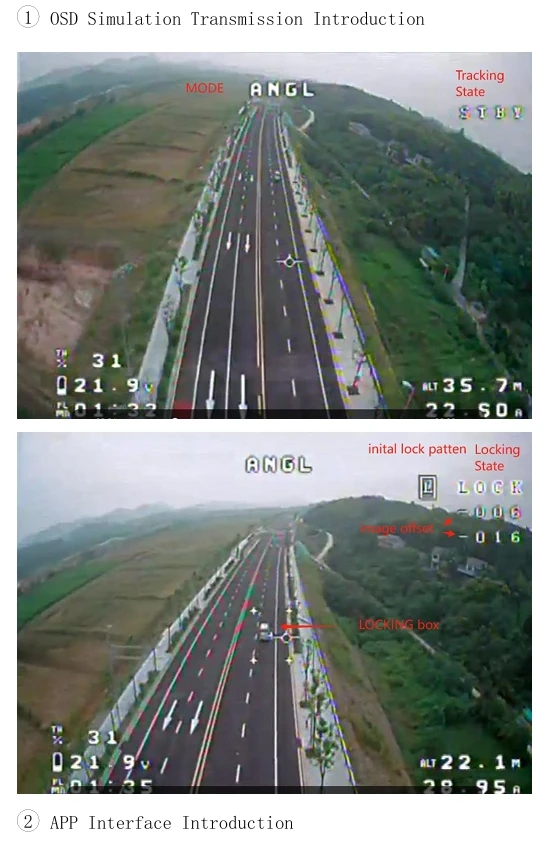

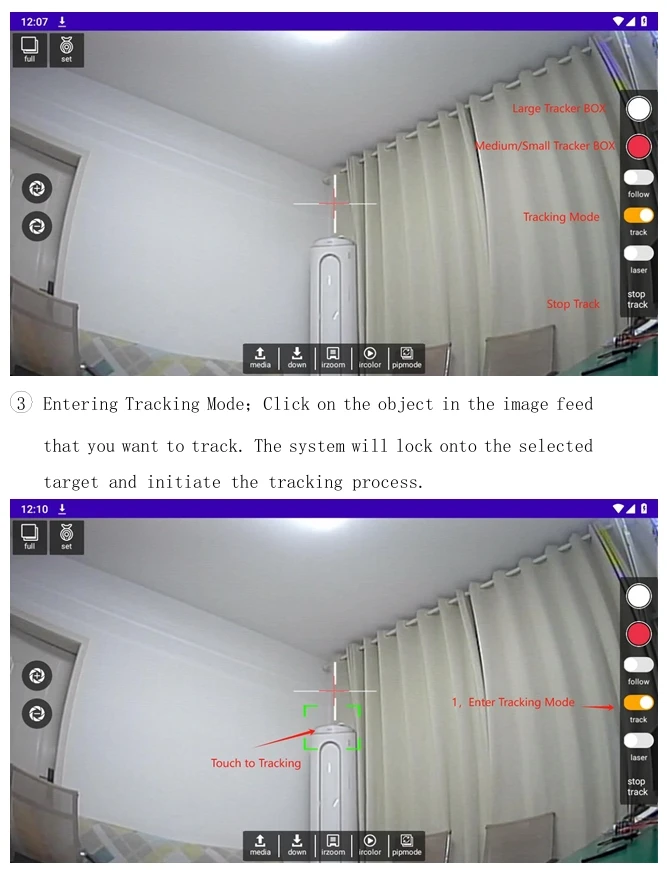

(5) Interface Operation Introduction

(6) Indoor Environment Testing

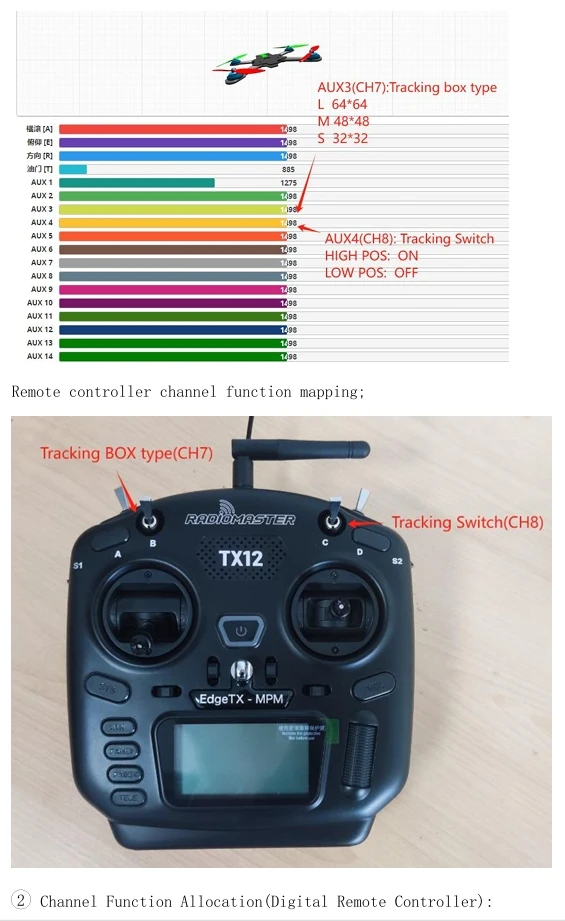

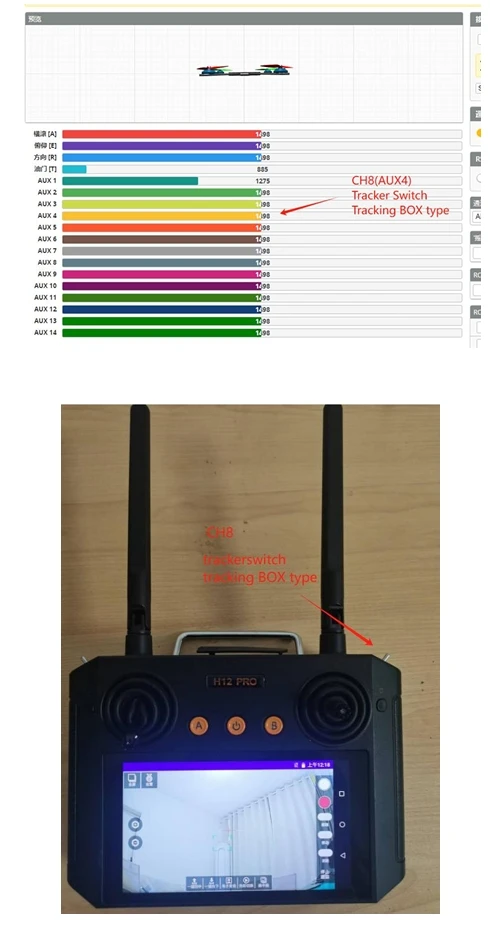

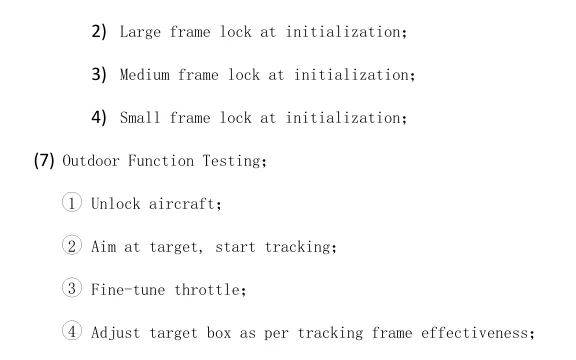

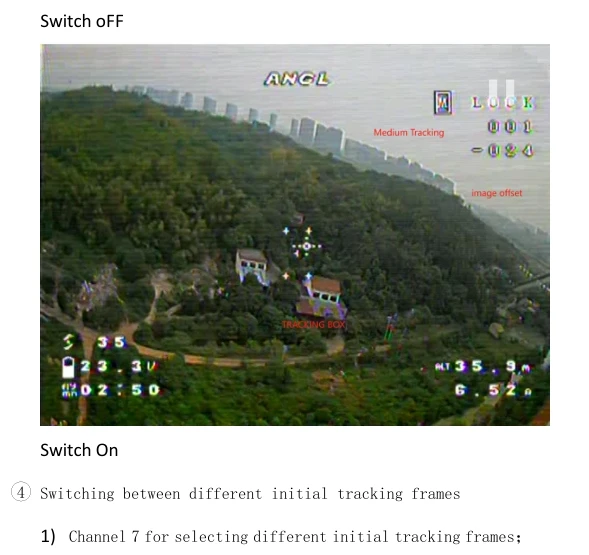

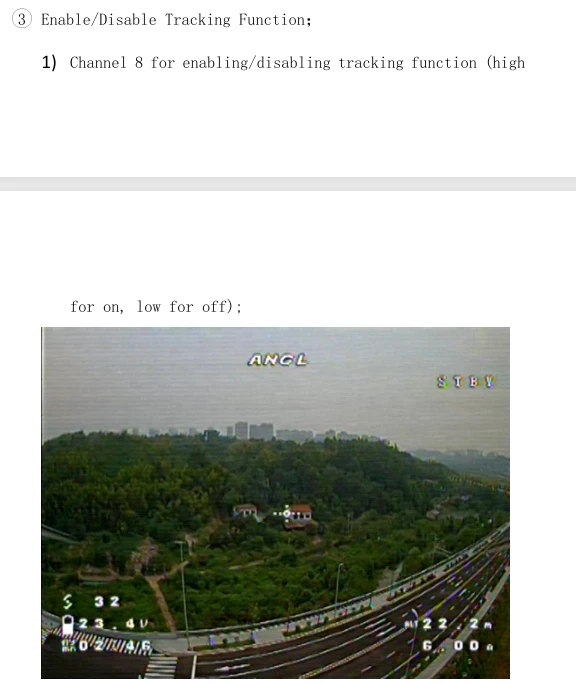

Channel Function Allocation(TX12)
