Products Description

Image Sensor: 1/3.2-Inch 4Mp 4:3sensor

Resolution: 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;

Ratio: 4:3 native /16:9

Lens: 2.1mm

FOV: 160°

Aperture: F2.0

Shutter: Rolling shutter

Min.Illumination: 0.001Lux

Weight: 7.2g

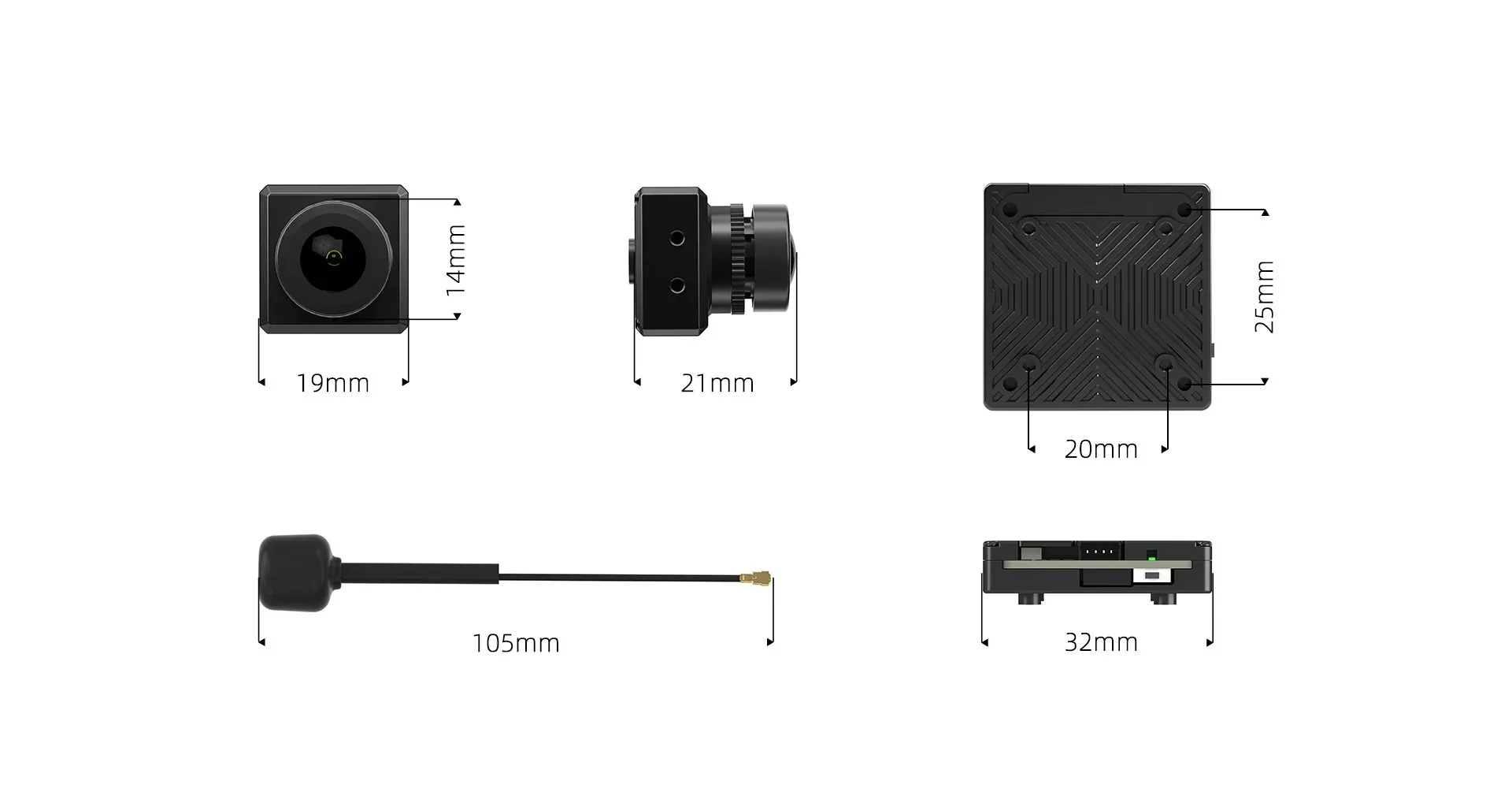

Dimensions:19*19*22mm

Coaxial Cable: 140mm

Gyroflow: Only 32G VTX Supported

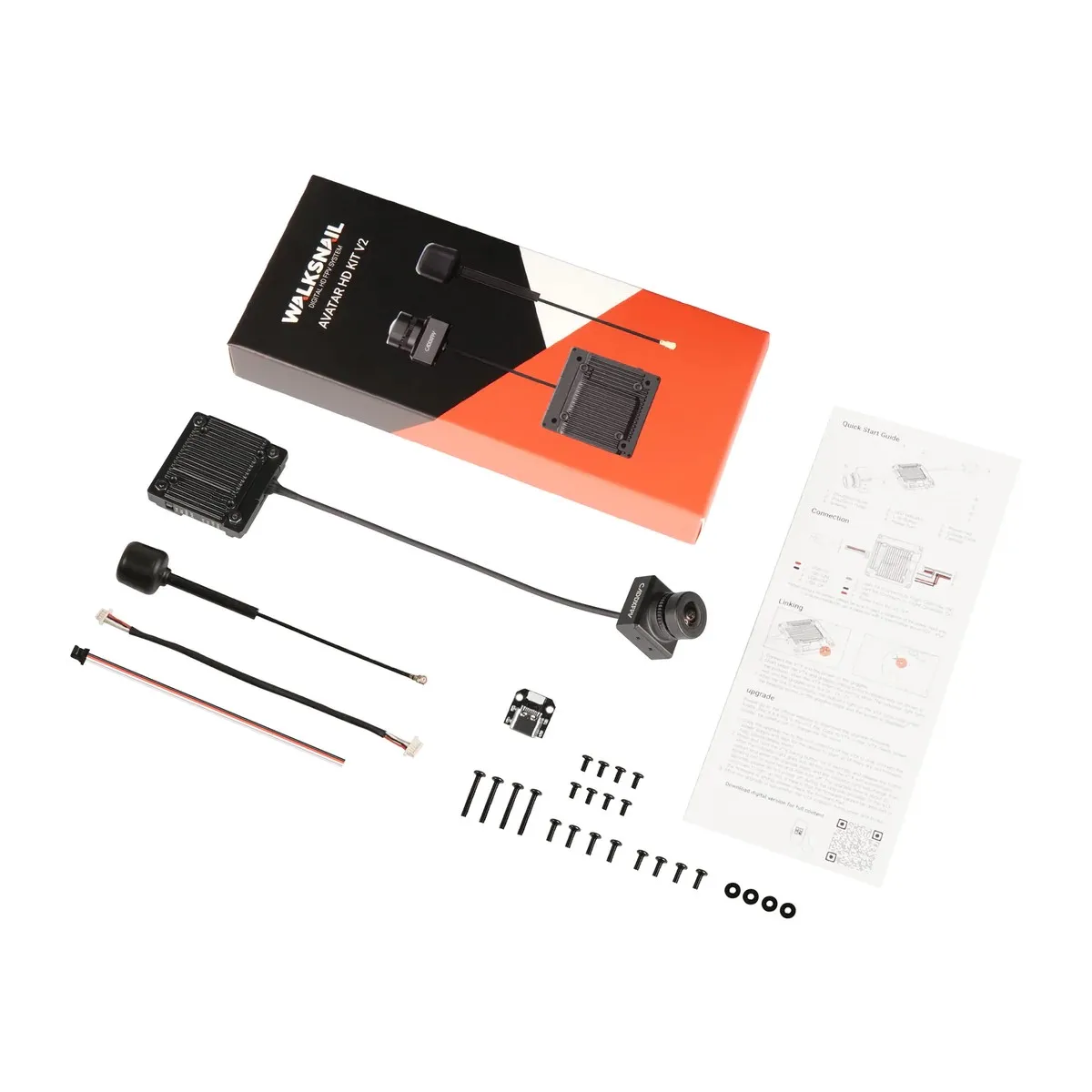

Packing List: USB transfer extension cableX1

4 Pin silicone cableX1

M2*4mm screwsX8

M2*5mm screwsX4

M2*6mm screwsX4

M2*14mm screwsX4
M2*5*0.5mm gasketX4

Details Images

Camera

* Dual antennas
* Compatible 4K
* 1080P 120fps compatibility
* 22ms low latency
* Ranging Mode
* 4KM range
* Light weight design
* FOV160°
* Built-in 32G storage,
* Support Gyroflow
* 6V-25.2V
* The only native 4:3 high-definition sensor in the FPV industry

* The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency.
* Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.

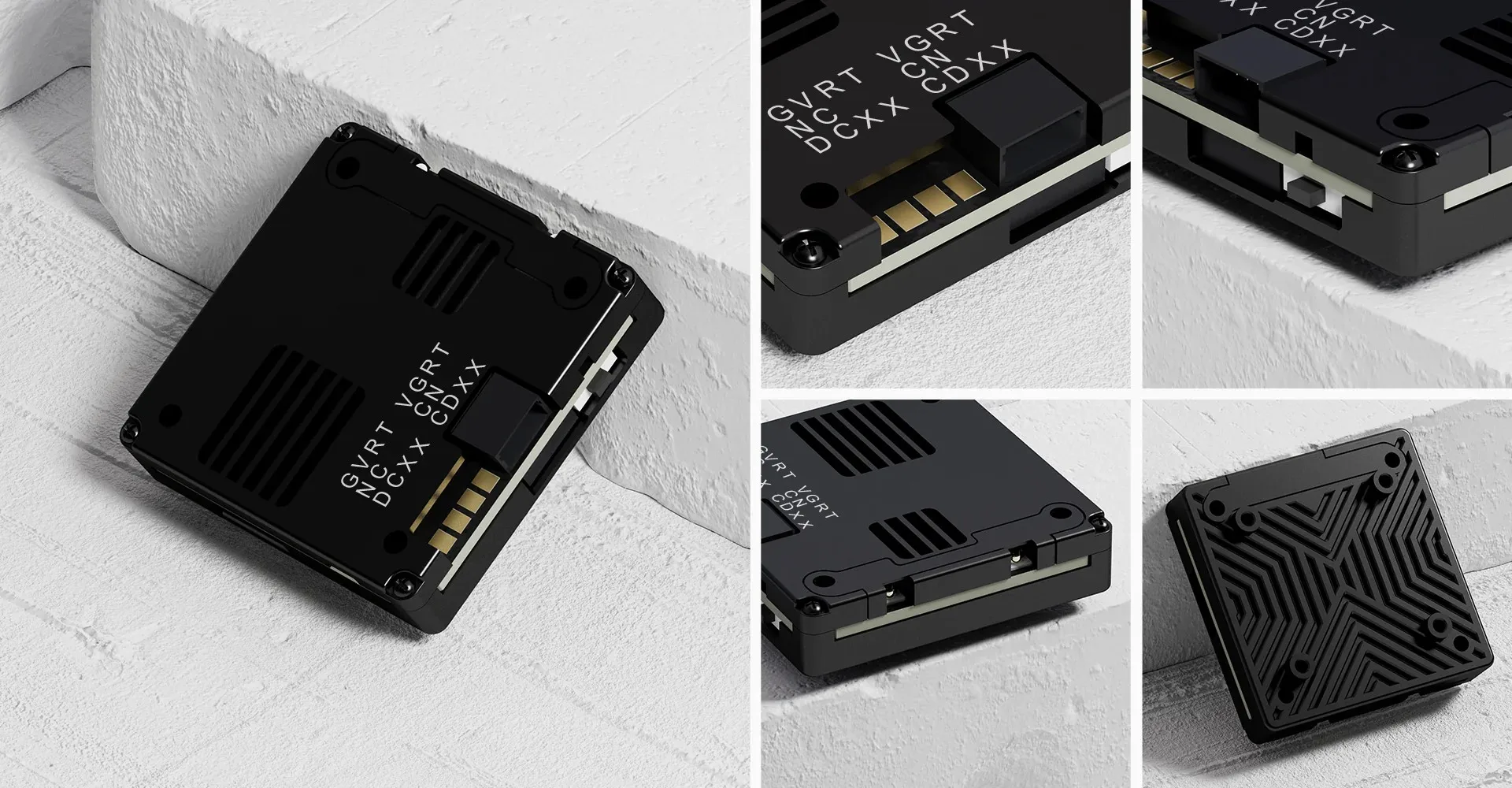

VTX

* Updated the design of PCB board and shell, improved the quality of VTX, more durable.
* Optimized the installation place of the antenna, so as to better protect the VTX.
* The position of the frequency binding button has been changed to make the frequency binding operation more convenient.

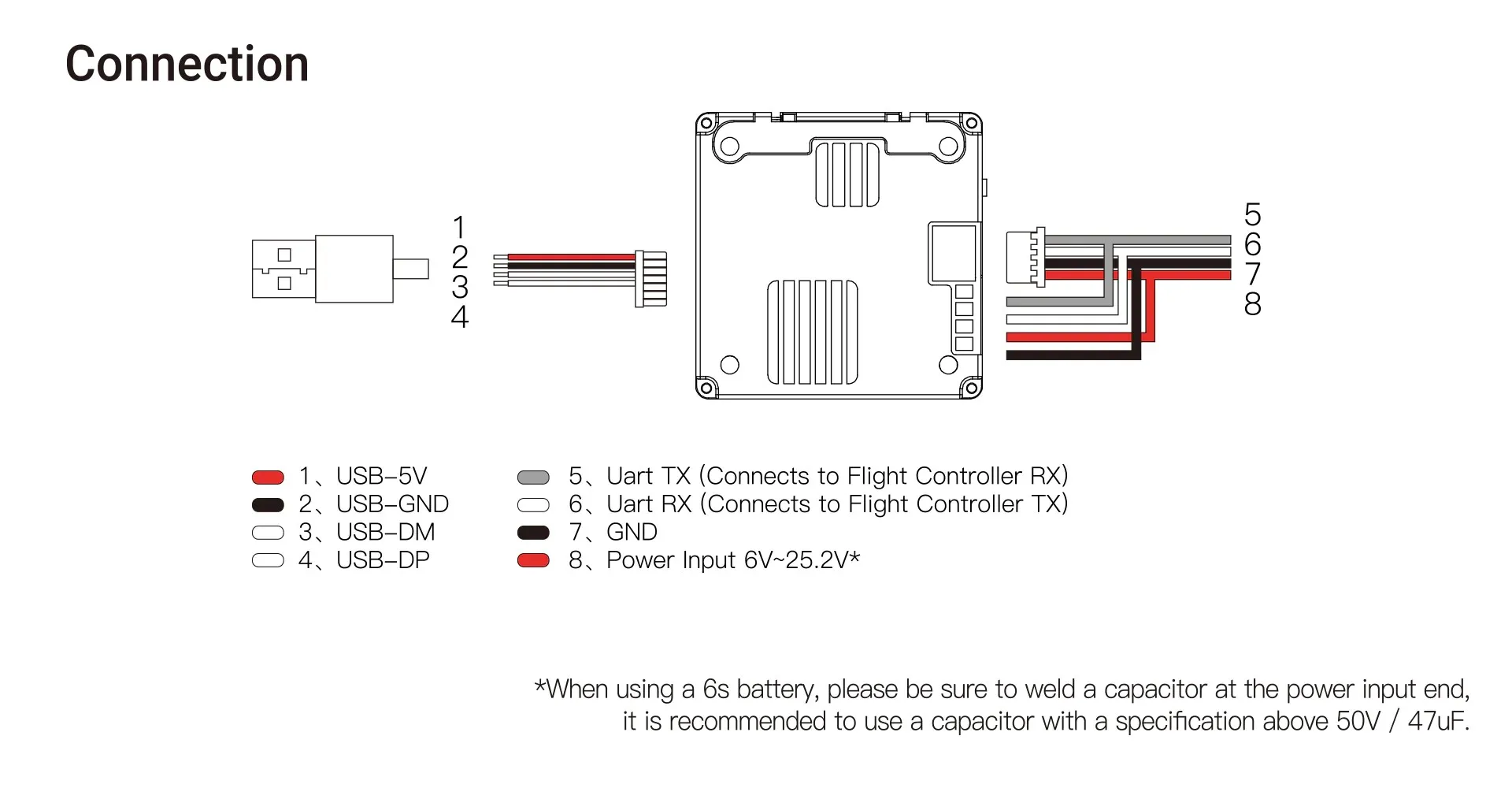

* A spare pad is added to provide two power connection modes.

* New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights.

* The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.

Specifications
