Products Description
|
Sensor Type |
1/3" CMOS Sensor |
|

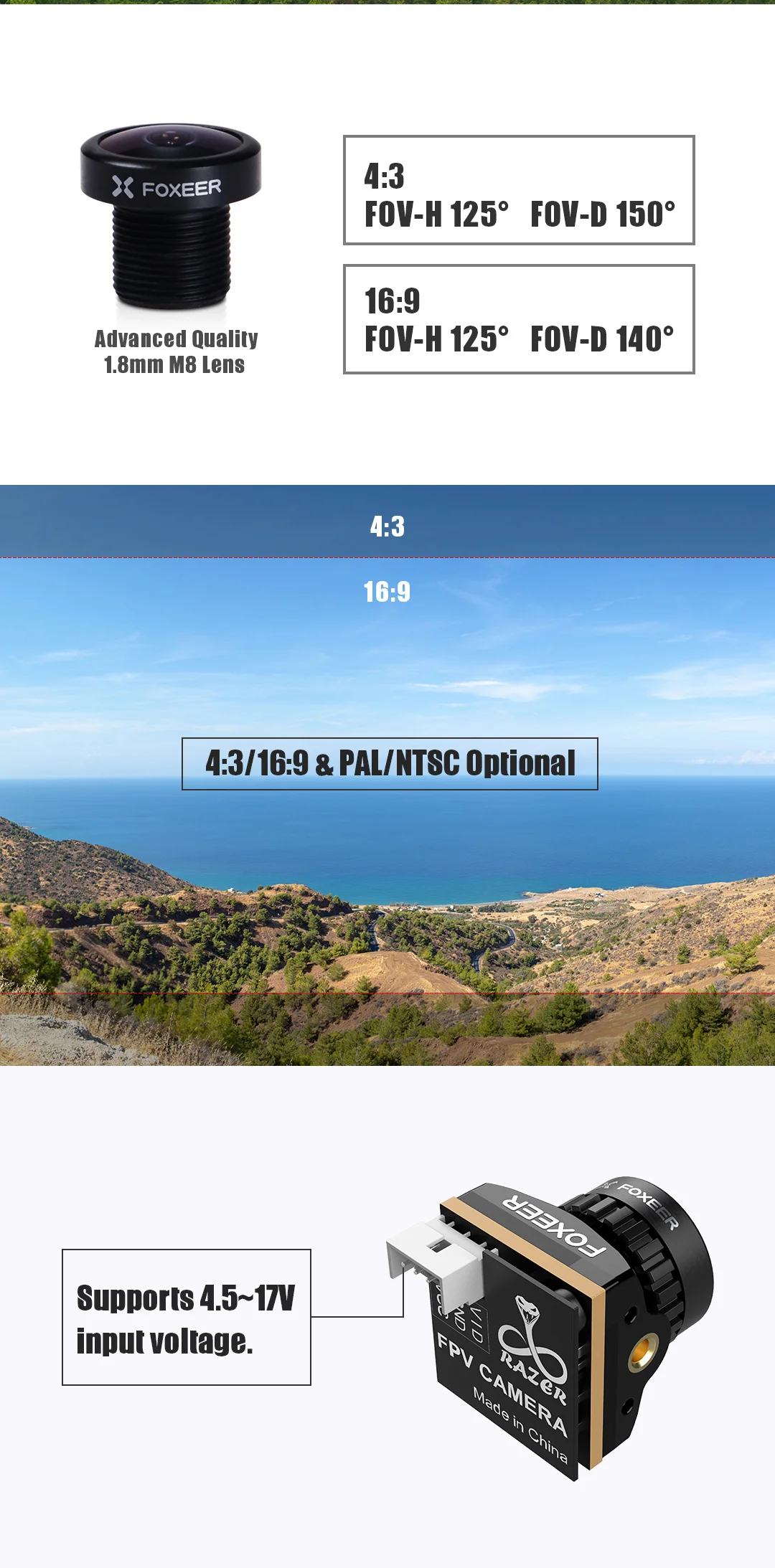

Lens |
1.8mm M8 |
|
Scale |
4:3/16:9 Optional |
|
Tv System |
PAL/NTSC Optional |
|
Resolution |
1200TVL |
|
Shutter Speed |
PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
|
Video Output |
CVBS Analog Signal |
|
FOV |
4:3 FOV-H:125° FOV-D: 150° |
|
Shutter Speed |
Auto |
|
Minimum Illumination |
0.01Lux |
|
White Balance |
Auto |
|
DNR |
3DNR |
|
WDR |
90dB |
|
Input Voltage |
4.5V~17V |
|
Working Temperature |
-10°~50°C RH90% MAX |
|
Working Humidity |
20~80% |
|
Storage Temperature |
-20°~70°C |
|

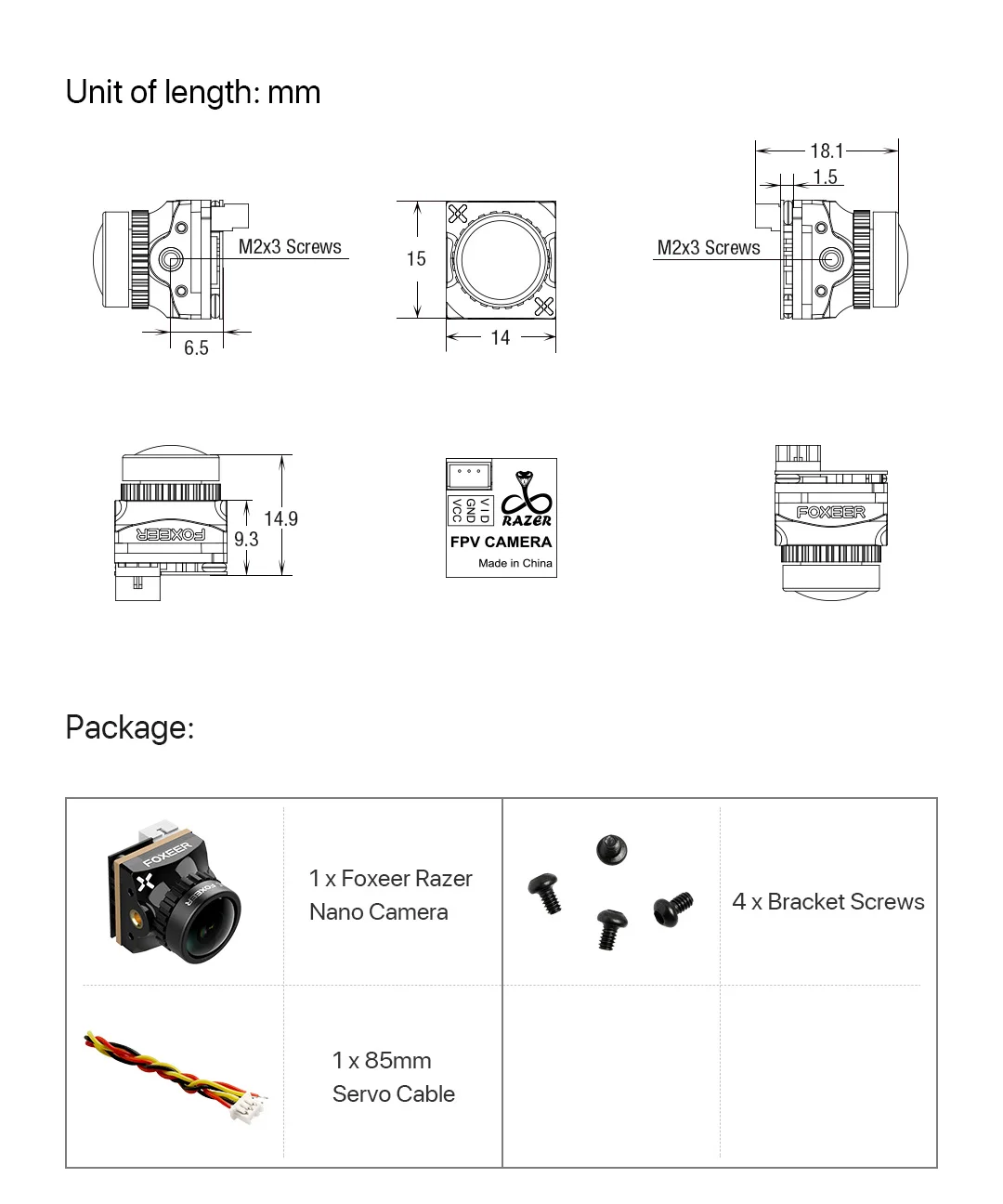

Dimension |
14*14mm |
|
Consumption |
140mA@5V / 64mA@12V |
|
Weight |
3.9g(Exclude cable) |
|
Working Humidity |
20~80% |
|
Storage Temperature |
-20°~70°C |
|
Consumption |
50mA±15% @ DC12V 115mA±15% @ DC5V |
|
Dimension |
22*22mm; 28*22mm(Add Bracket) |
|
Weight |
12g(Exclude cable) |
Details Images
