Matek F411-WTE Flight Control Module With OSD Player FPV Supports 2S-6S Sensor B

Matek F411-WTE Flight Control Module With OSD Player FPV Supports 2S-6S Sensor B

(0) 0 Reviews 0 Orders 0 Wish listed

$45.00

Quantity:

Total price :

(Tax : )

Overview
Reviews

Products Description

MCU:100MHzSTM32F411CEU6 Sensor:BMI270 Baro: SPL06-001 (12C) OSD:AT7456E(SPI) Black box: None 2xUART2x Full Softserial6x PWM outputs (2x Motors, 4x Servos)1x12C 4xADC (VBAT, Current, RSSl, AirSpeed) 3 LEDs (blue, red) and 3.3V indicator light (red) for FC status Built in inverter on UART2-RX for SBUSinput Switchable dual camera input Vbat power ON/OFF switchable forVTX and cameraPPM receiver: not supported

Features

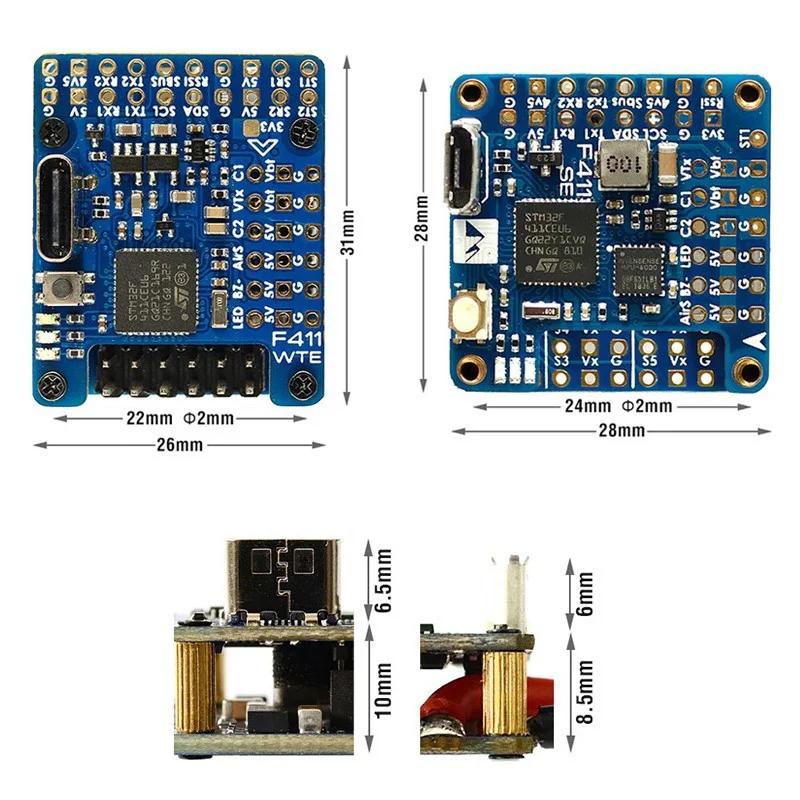

6~30V DC input (2~6SLiPo) 132A Current Sense (Scale 250) PDB/Current sense resistor: 90A continuous, 132A burst. BEC5V 1.5A servo for FC and peripherals BECVx5A, 5V/6V option VTX and Vbat for camera (can be turned on/off) LDO 3.3V 200mA BatteryVoltage Sensor: 1k:10k FC firmware INAV target: MATEKF411TE (INAV4.1 or newer) Dimensions: 31x26x16.5mm Mounting: 22x22mm, center 2mm Weight: 10g
