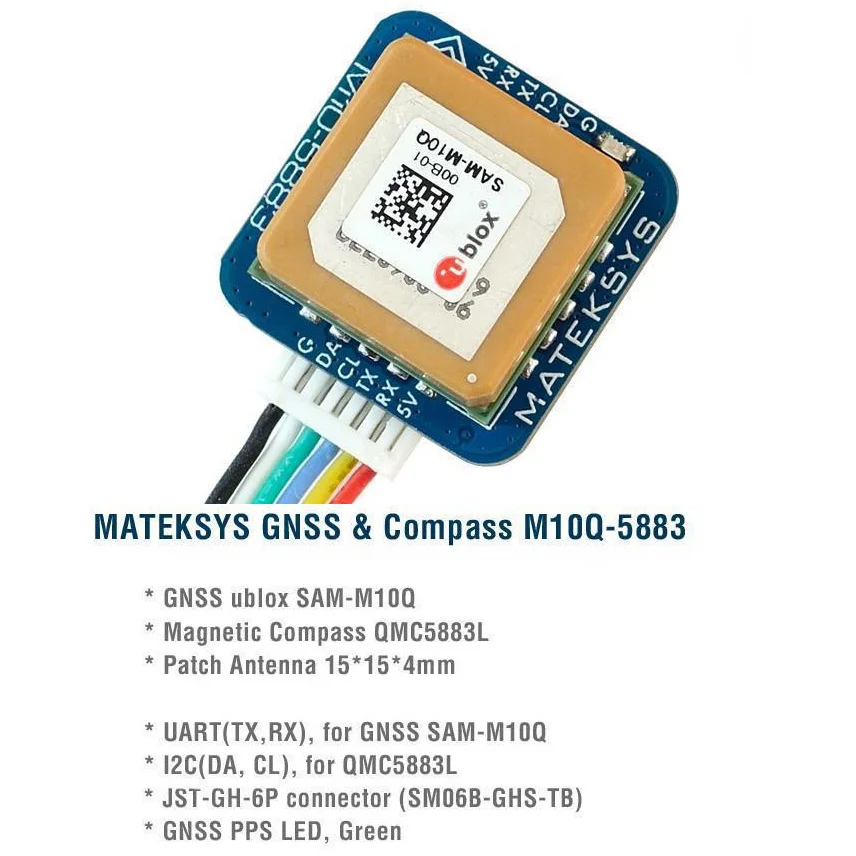

Products Description

* GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou) * Magnetic Compass QMC5883L
* Patch antenna 15*15*4mm
* Protocol:UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
* GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
* JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
* I2C(DA, CL) interface for Compass QMC5883L
* UART(TX, RX) interface for GNSS SAM-M10Q-00B
* Operating Temperatures: -20~80 °C

Features

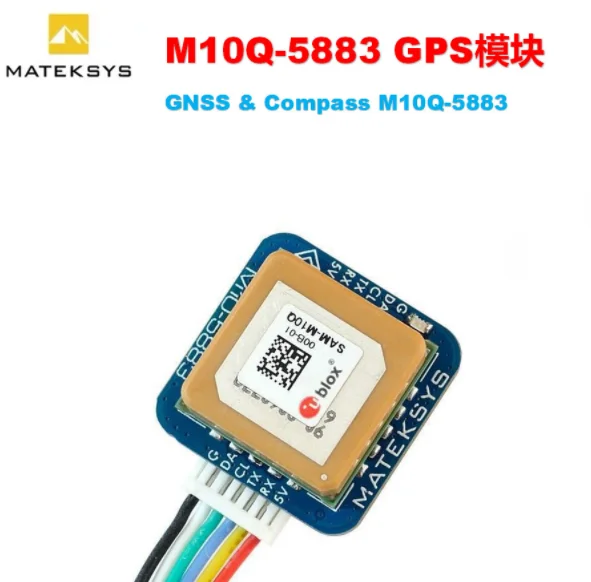

* M10Q-5883 uses multi-constellation GNSS module powered by u-blox SAM-M10Q-00B.
* The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time
for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number
of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular
under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity
and can improve the dynamic position accuracy in non-line-of-sight scenarios.
* The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional
antenna radiation pattern increases flexibility for device installation.
* More details about the SAM-M10Q, pls check out u-blox SAM-M10Q page
