Key attributes

Other attributes

place of origin

Guangdong, China

brand name

MAMBA

model number

MAMBA F405MK2 V2 (42688P)

private mold

Yes

Brand Name

DIATONE MAMBA F405MK2 V2 (ICM42688P)

Model

DIATONE MAMBA F405MK2 V2 (ICM42688P)

Technical parameters

KV1100

Model Number

DIATONE MAMBA F405MK2 V2 (ICM42688P)

Function

accessory

Remote Control Peripherals/Devices

Remote Controller

Type

FPV DRON ACCESSORY

ODM

acceptable

Usage

FPV drone accessory

Keyword

FPV drone accessory

Details Images

Products Description

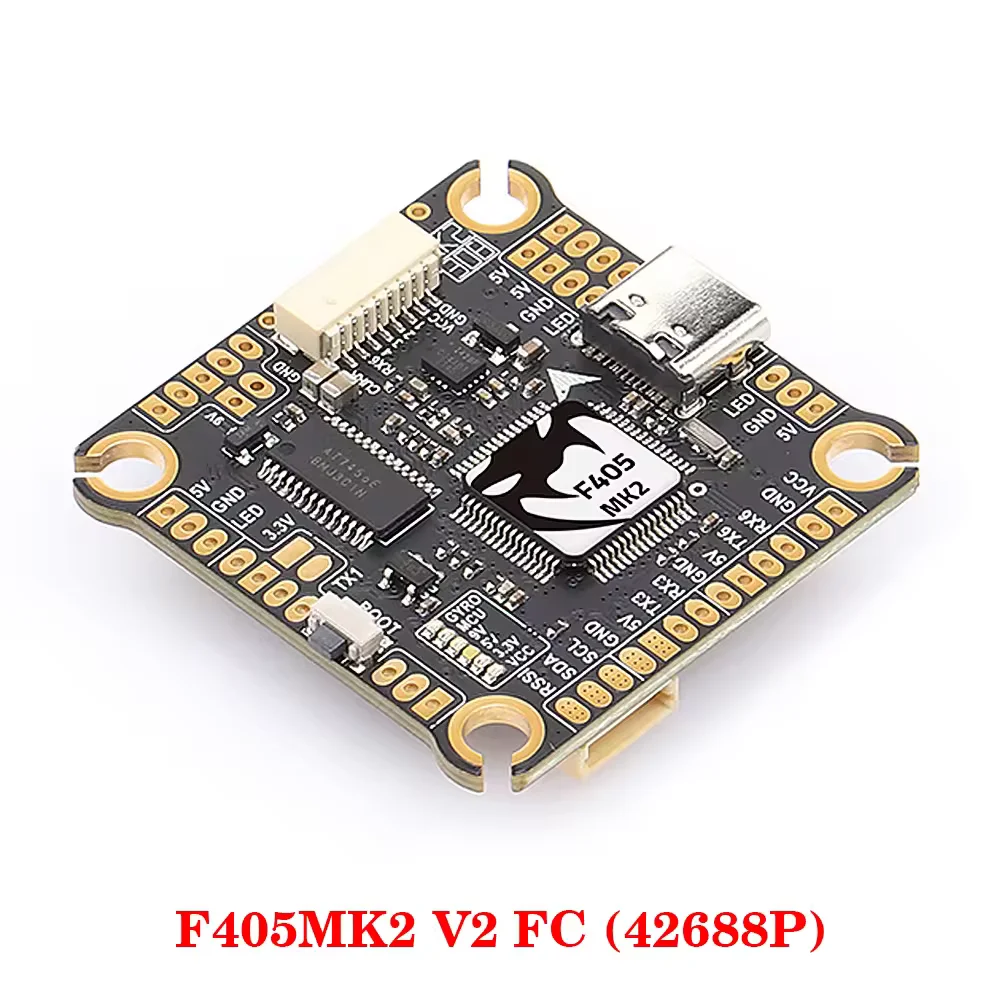

MAMBA F405MK2 V2 FC (ICM42688P)
* Firmware: Furyf4osd
* Main control: 168MHz STM32F405
* Gyroscope: ICM-42688-P
* OSD: Support
* Black box: 16M Flash Memory
* Ben: NO
* Serial port: 3SET
* I2C signal: support
* F.Port signal: NO
* RSSI signal: support
* Bee Narrator: Support
* Electric output: 6 set
* Electrical Agreement: DSHOT300/600
* Electrochemical return: support
* Status indicator: Yes
* LED output: BF LED
* Sky end interface: support
* Wifi tuning: NO
* VTX power control: NO
* BEC protection: yes
* Receiving machine protection: yes
* TVS Power Protection: Yes
* BEC output: 3.3V 0.5A & 5V 2A & 9V2A
* Working voltage: 3 ~ 6S Lipo (12.6 ~ 25.2V)
* Installation size: 30.5mm/m3
MAMBA F55 BLS ESC
* Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)
* Rating current: 55A × 4
* Peak current: 60A (10S)
* BEC: NO program: DSHOT300/600
* Firmware: BLHELI_S CH40
* TVS Power Protection: Yes
* Install holes: 30.5mm/m3
* Size: 44.5 × 40 × 6.8mm
* Shipping: 8pin SH1.0 × 2
* AMASS Original XT60 × 1
* High -frequency capacitor 470UF/35V × 1

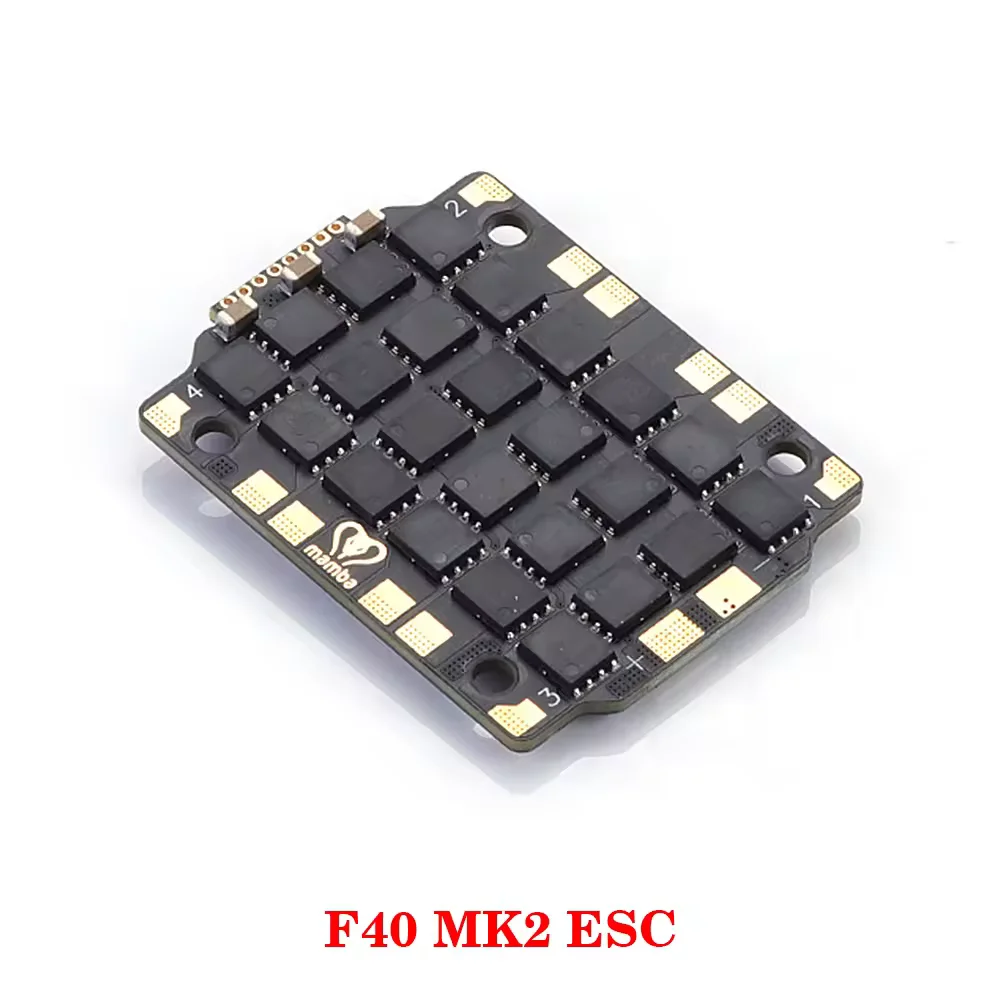

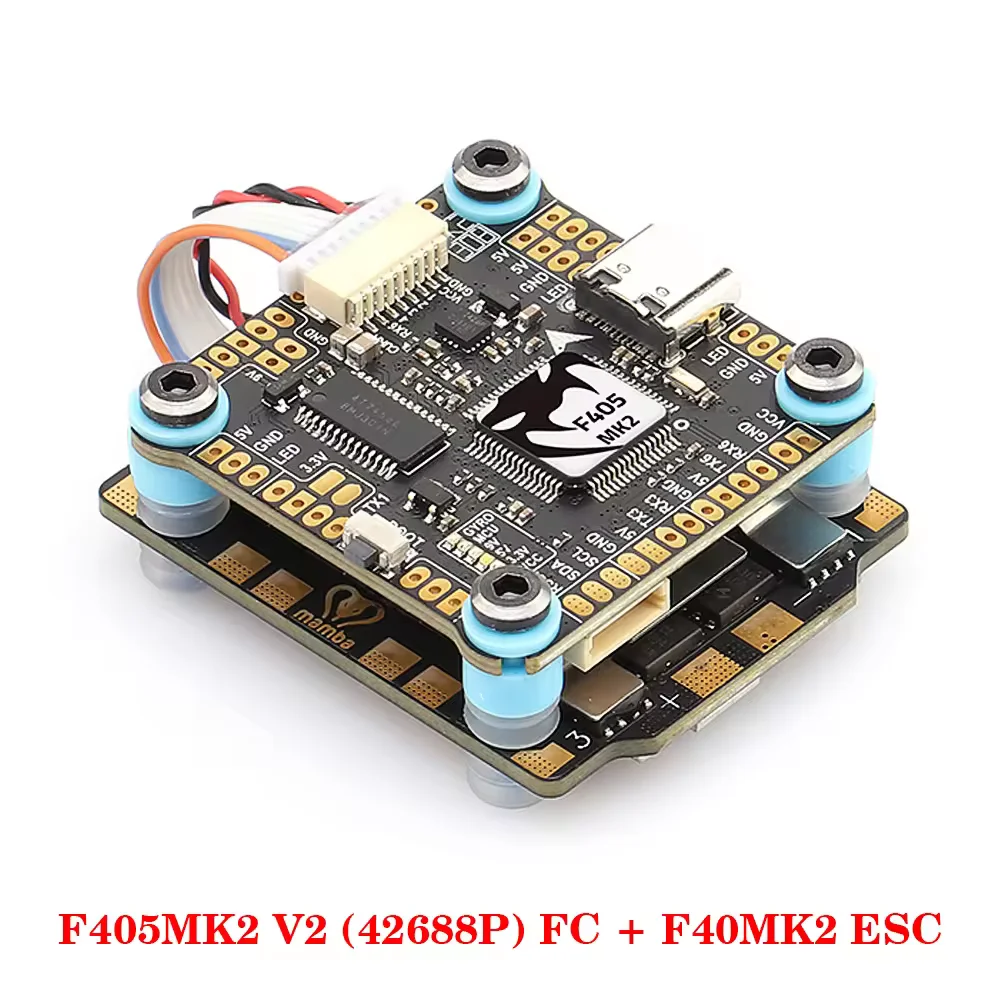

MAMBA F40MK2 ESC
* Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)
* Rating current: 40A × 4
* Peak current: 50A (10S)
* BEC: NO
* Firmware: BLHELI_S CH40
* Program: DSHOT300/600
* TVS Power Protection: NO
* Install holes: 30.5mm, m3
* Shipping:
* 8pin SH1.0 × 2
* AmAss Original XT60
* High -frequency capacitor 470UF/35V.
