Emax F3

Product Name

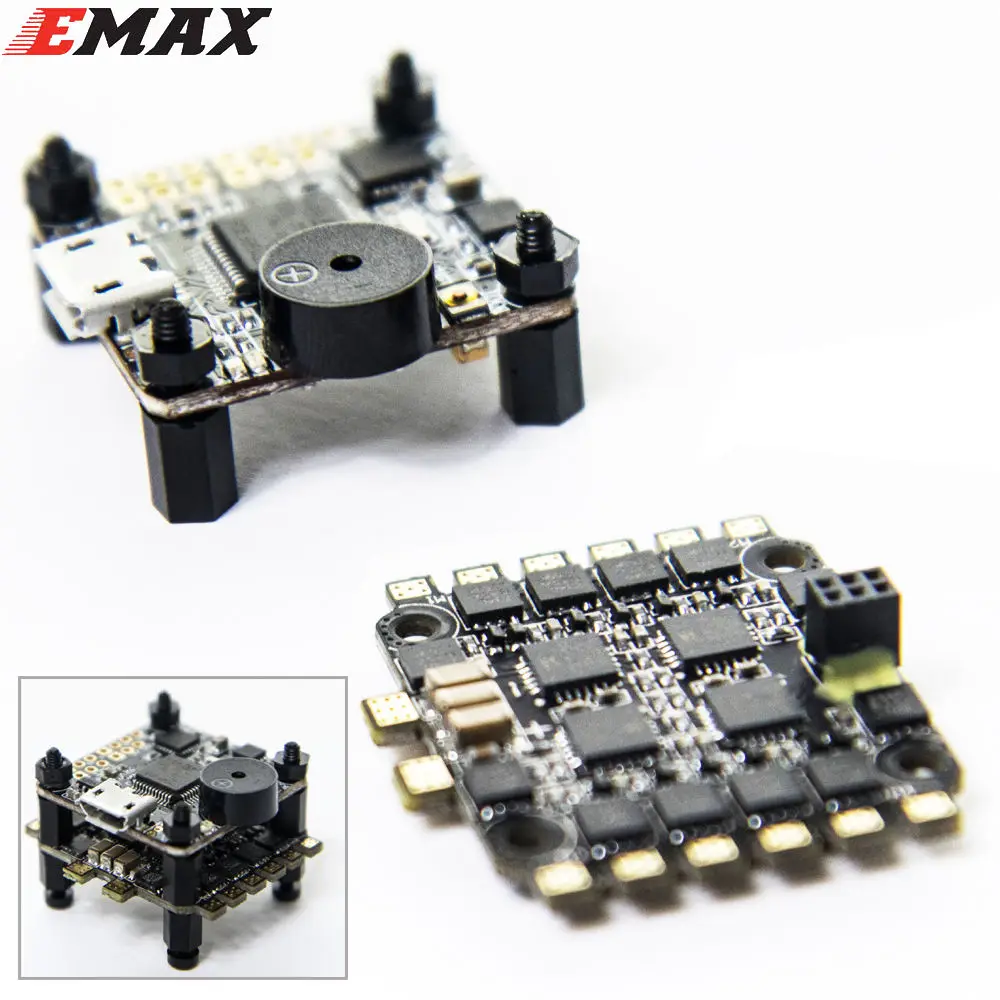

Emax F3 Magnum Mini FPV Stack

Brand Name

EMax

Model Number

EMAX186

Soft Ware

Betaflight

Betaflight OSD

EMaxOSD

Product Description

Designed for high performance Micro FPV racers, the F3 Magnum Mini packs in a F3 processor, Betaflight OSD and 12A 4 in 1 ESC that
can handle up to 4s batteries. MPU6000 gyro is a proven performer for stable flight and resistance to vibration noise.
The FC and ESC with neatly stack together with pinned interconnects that make your build easy to assemble and cleaner looking.

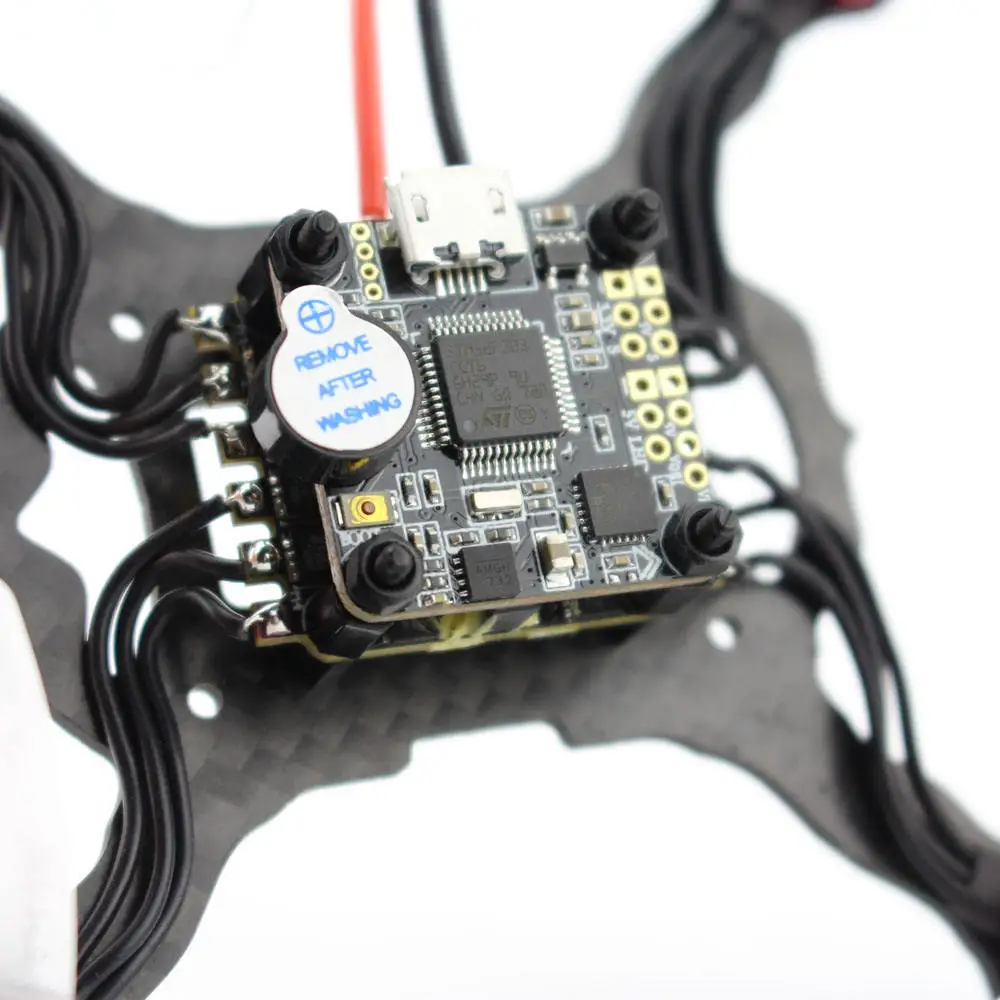

This tightly pre-assembled package will fit any frame that has 20 x 20mm mounting hole spacing.
The F3 Magnum Mini is the fastest way go from starting a new micro build to FPV Flight!

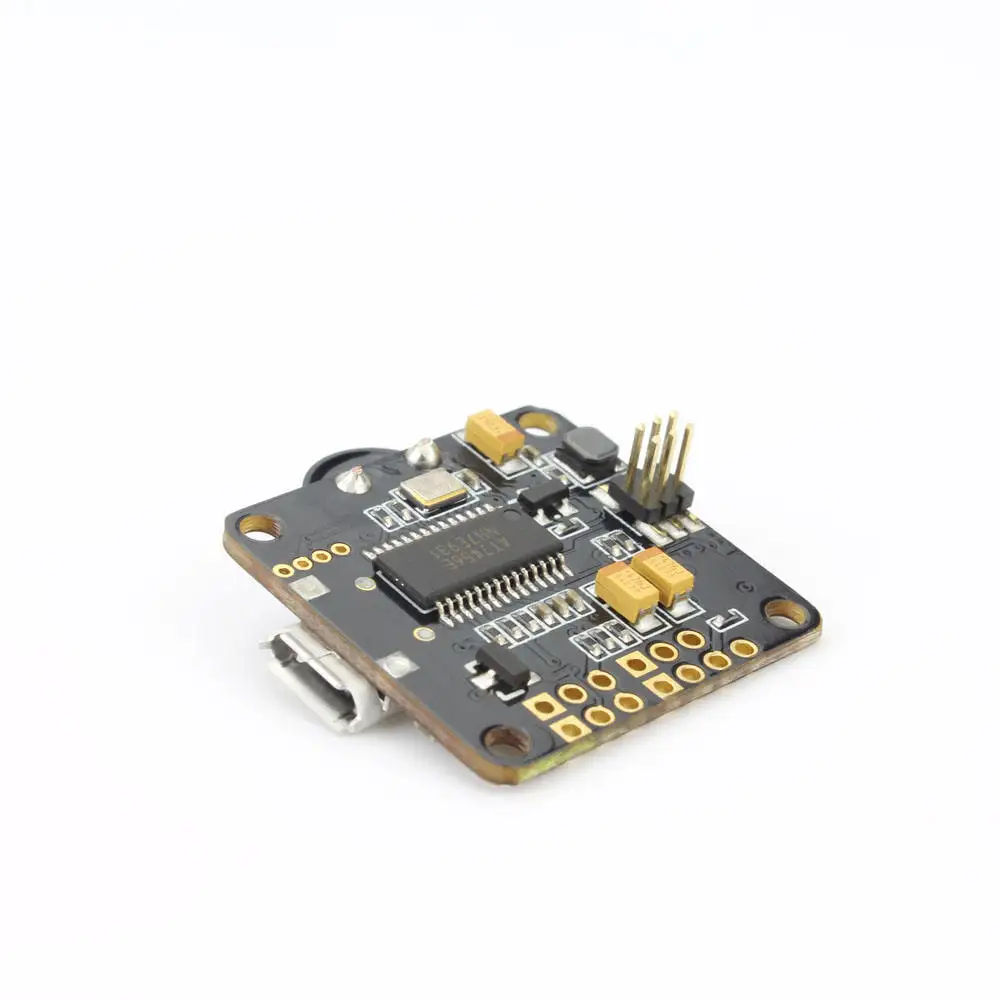

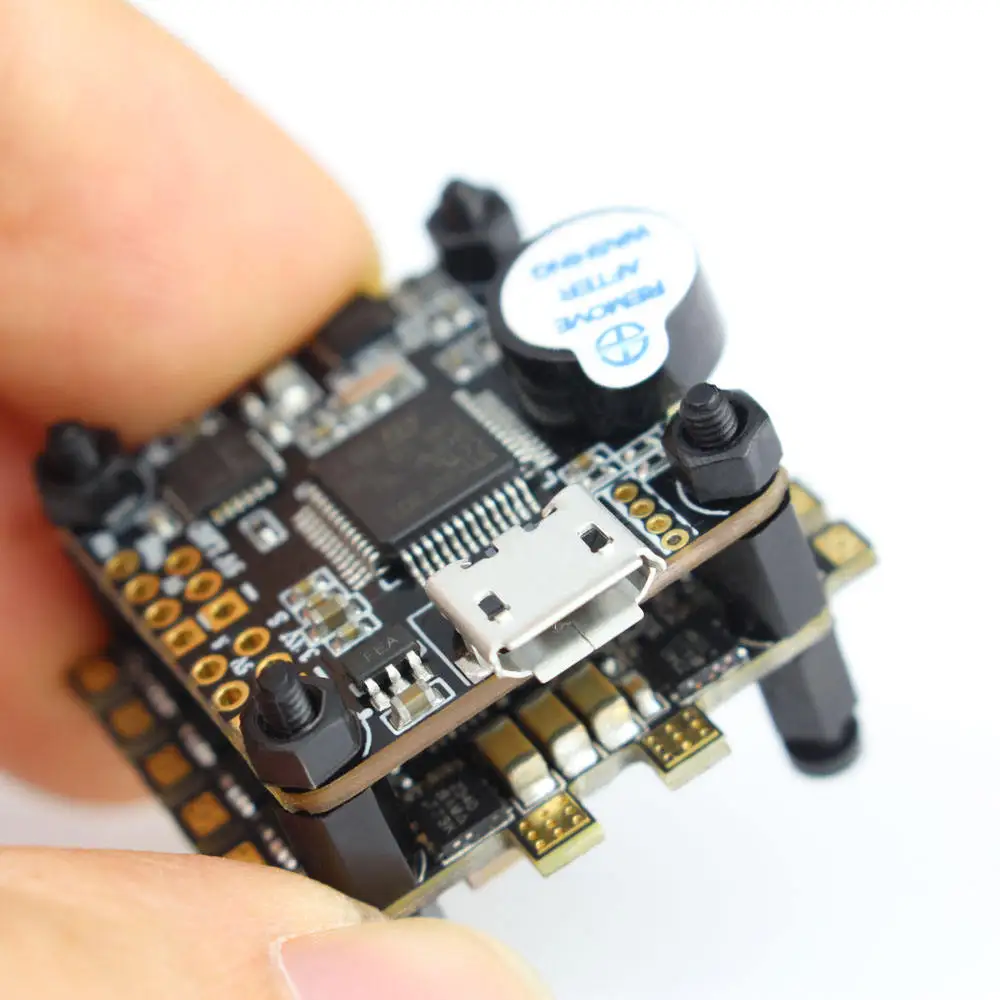

4 in 1 Main Board - F3 FC + Betaflight OSD + 5v Regulator + Buzzer
The heart of the flight control systems is a powerful STM32F303 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady
flight stability. The integrated 5v/3A voltage regulator means clean power for all the FC/OSD components and other attached boards
such as VTX, RX and FPV Camera. Betaflight OSD with easily customizable layout of vital flight information and ability to change
FC flight parameters. On board buzzer for battery level warning or lost model finder functions.

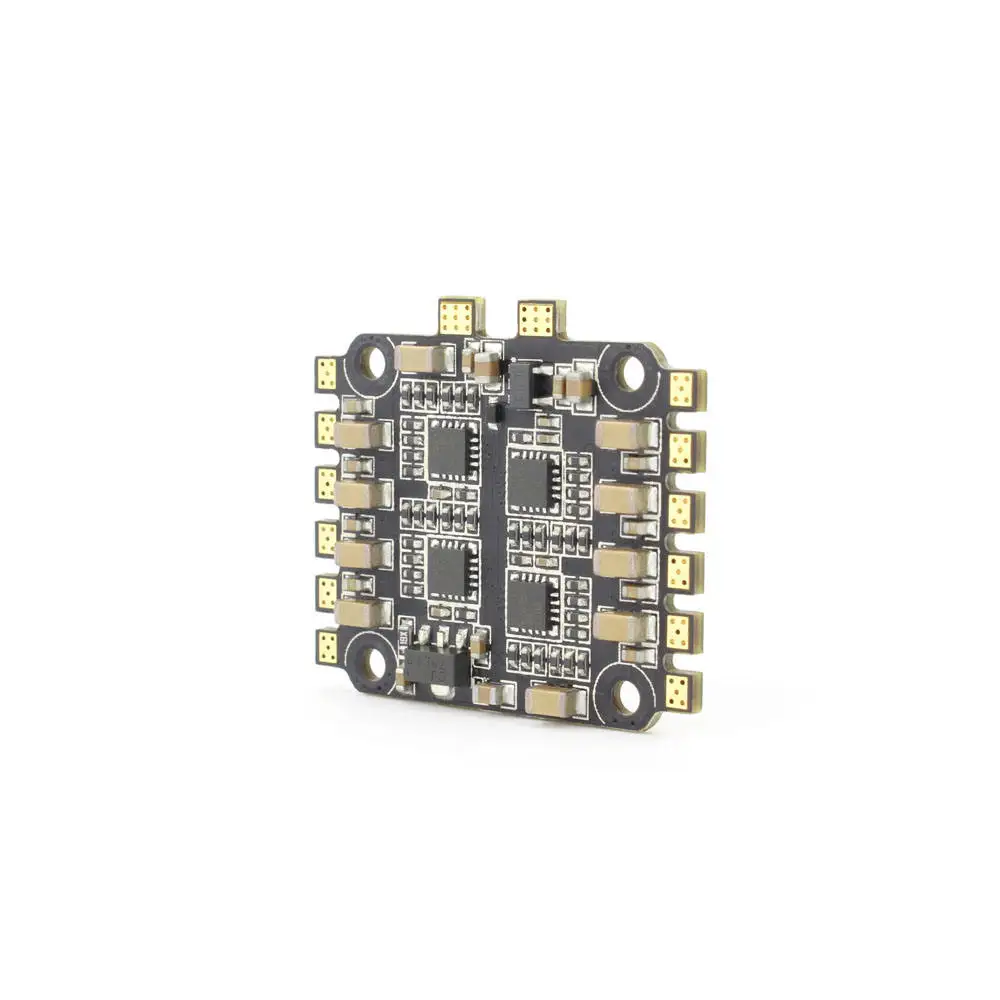

BLheli S 12A - 4 in 1 ESC
The ESC system is comprised of 4 x 12A continuous Bullet ESC's using top quality MOSFETs and EFM8BB21F16G MCU. Run your choice of
protocol: DSHOT, Multishot, Oneshot 125.
Instruction Manual: CLICK HERE

Specifications:
4 in 1 Flight Controller Main Board
OMNIBUSF3 Betaflight Target
STM32F303 MCU
MPU6000 accelerometer/gyro (connected via SPI)
On-board Betaflight OSD
On-board Buzzer
Integrated 5V/3A BEC
Dedicated PPM/ Sbus receiver input and 3.3V Pad for DSM Sat RX's
Addressable LED pad
24x24mm board with 20mm mounting holes

4 in 1 ESC and Current Sensor Board
Continuous current 12A and 15A Burst(within 5 seconds)
Supply voltage 2-4S Lipo
EFM8BB21F16G 50mhz MCU
BLHeli-S firmware supports DSHOT up to 600, MULTISHOT, ONESHOT125
Top quality MOSFET
3oz high TG PCB board
24x25mm board with 20mm mounting holes

Included in package:
1pc - F3 Magnum Mini FC + OSD Board
1pc - Magnum 12a 4 in 1 ESC Board
M2 Mounting hardware
Printed Manual

F3 Magnum Mini Selling Points.
-Stackable F3 Flight controller + ESC tower system for Micro FPV Racer with 20x20mm hole spacing.
-BLheli S 12A 4 in 1 ESC - Oneshot, Multishot & DSHOT - 2-4S battery ready.
-Betaflight OSD for easy PID running and display of flight time/voltage.
-Built in Buzzer for lost model finder and low battery warning.
