Key attributes

Other attributes

place of origin

Guangdong, China

model number

RHSH116

Product Name

RUSH FPV Stack

Brand Name

RUSH

Model Number

RHSH116

Soft Ware

Betaflight

OSD

AT7456E CVBS OSD

BLACKBOX

16MB FLASH

Product Description

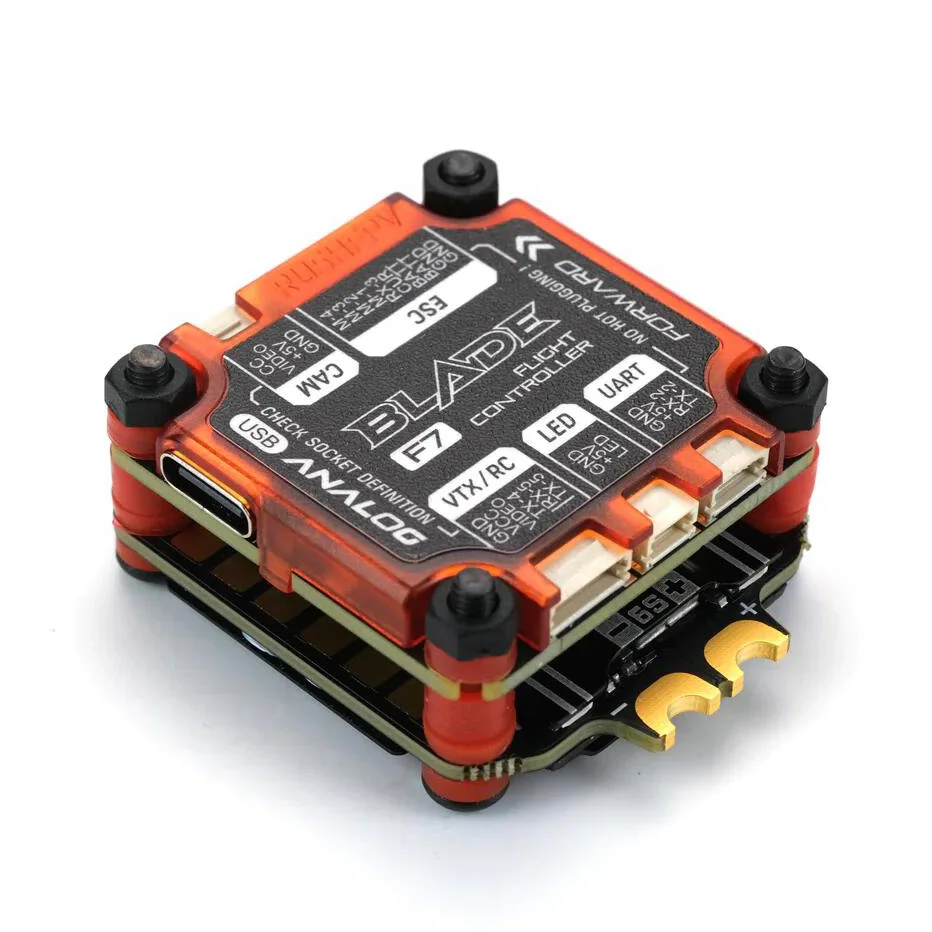

FPV Stacks RUSHFPV RUSH BLADE V2 Stack F722 Analog Digital Flight Controller Extreme 60A 128K BLHELI32 4in1 ESC for FPV Drone

The RUSH BLADE F722 Stack for analog FPV Systemby RUSHFPV features the RUSH BLADE F722 Analog Flight Controller and RUSH BLADE 60A
3-6S BLHeli_32 128kHz 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.
SPECIFICATIONS:

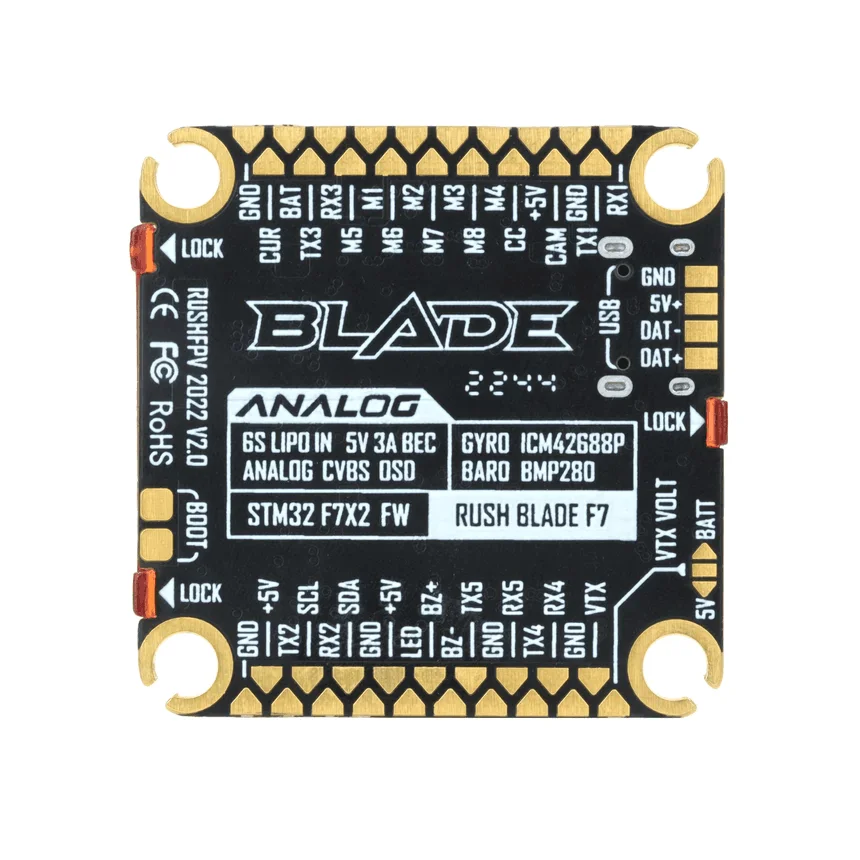

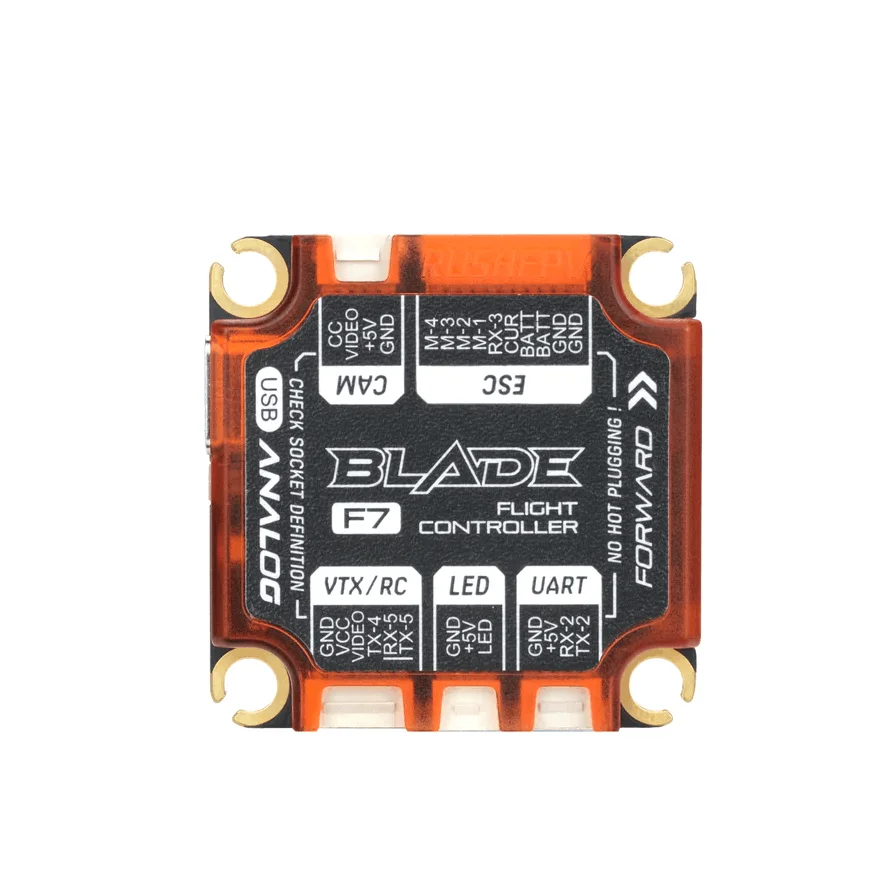

RUSHFPV RUSH BLADE F722 ANALOG FLIGHT CONTROLLER
* MCU：STM32F722RET6
* GYRO：ICM42688P
* BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
* OSD ：AT7456E CVBS OSD
* BLACKBOX ：16MB FLASH
* TARGET： RUSH_BLADE_F7
* PORT ：8×PWM 5×UART 1×I2C
* ADC： V-BATT / CURR-ESC
* LED：WS2812 LED STRIP
* BARO：BMP280
* MOUNTING HOLES： 30.5*30.5mm
* SIZE ：36.5mm*37mm*5.2mm
* WEIGHT： 11g(without cable)

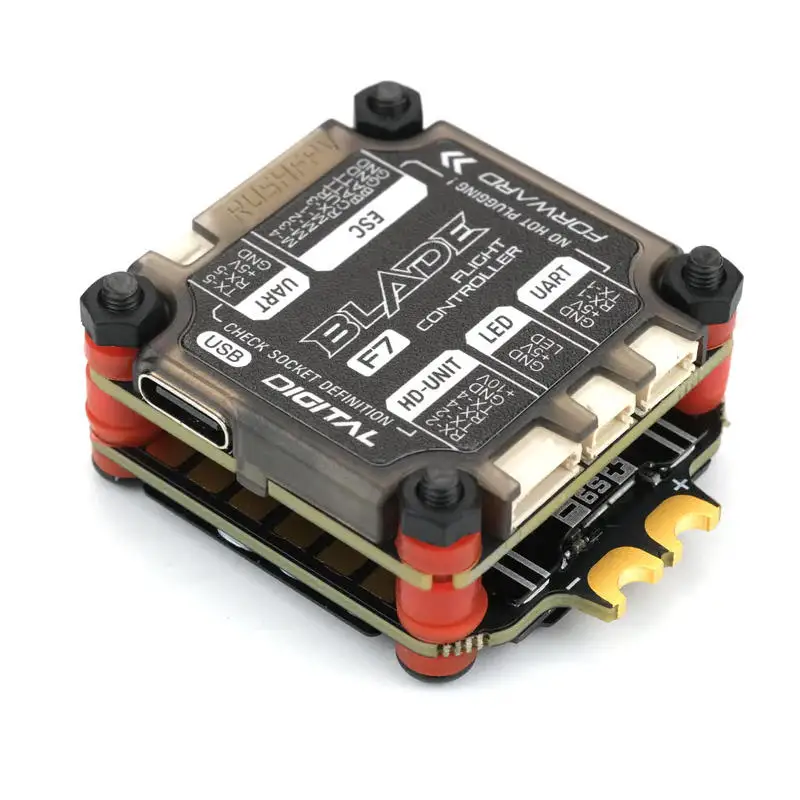

RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System
* MCU： STM32F722RET6
* GYRO： ICM42688P
* BLACKBOX ：16MB FLASH
* BEC：INPUT 7-36V / 3-6S LIPO，OUTPUT 1 5V 3A，OUTPUT 2 10V 3A
* PORT： 8×PWM 5×UART 1×I2C
* ADC： V-BATT / CURR-ESC
* LED： WS2812 LED STRIP
* SIZE： 36.5mm*37mm*5.2mm
* BARO：BMP280
* MOUNTING HOLES：30.5*30.5mm
* TARGET： RUSH_BLADE_F7_HD WEIGHT 11g(without cable)

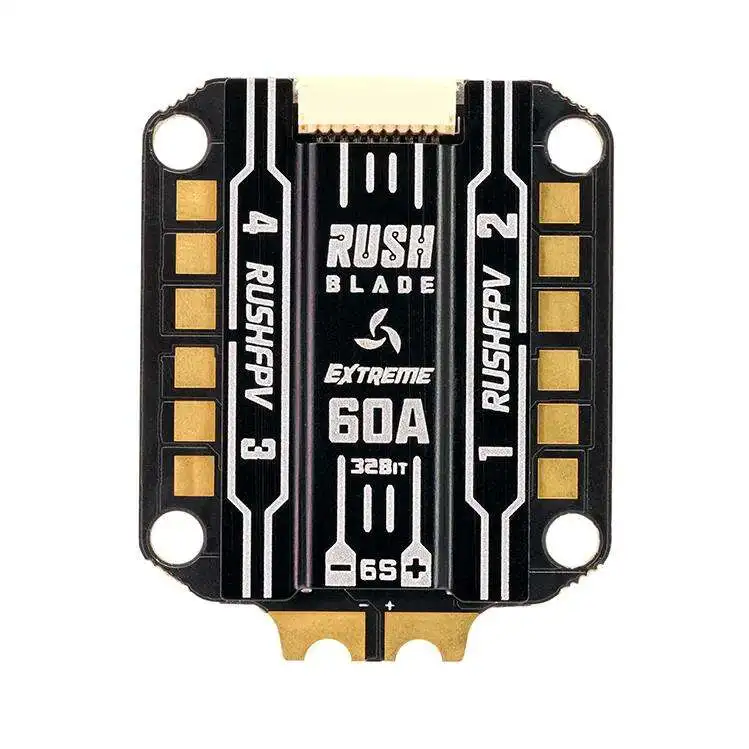

RUSHFPV RUSH BLADE 60A 128KHZ 3-6S BLHELI_32 4-IN-1 ESC - EXTREME EDITION
* Rated Current: 60A
* Peak Current: 80A
* Input Voltage: 3-6S Lipo
* MCU: F4 @ 200MHz
* PWM FREQ: 24-128KHz
* LED Color: Orange
* Weight：16.5g
* Dimension: 45*36.5*7.5mm
* BL32 FW: RUSH_BLADE_EXTREME
