Key attributes

Other attributes

type

Drone Parts

place of origin

Guangdong, China

brand name

Pixhawk

compatible brand

others

private mold

Yes

Material

Plastic

Brand Name

Pixhawk PX4 Autopilot

Model

Pixhawk PX4 Autopilot PIX 2.4.8 32

Function

accessory

Type

RC FPV DRONE ACCESSORY

ODM

acceptable

Usage

FPV drone accessory

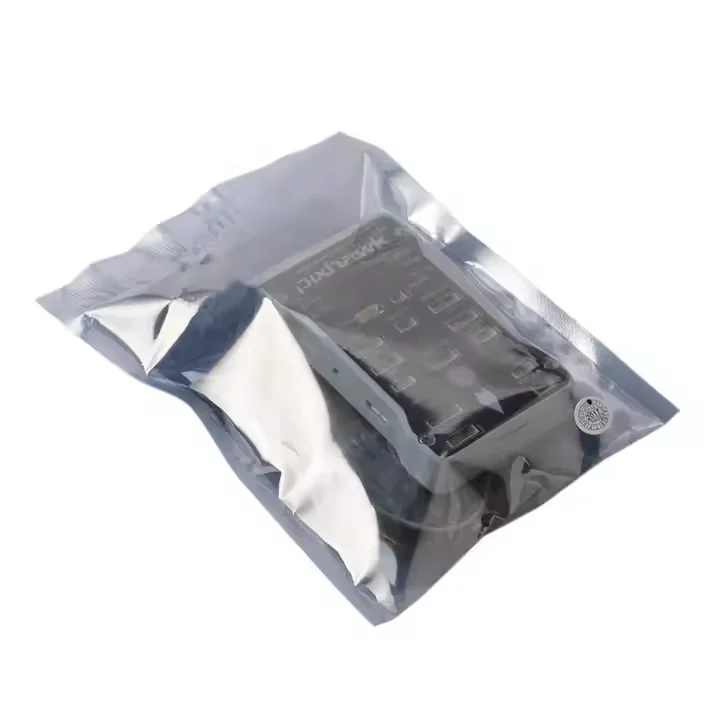

Packaging and delivery

Selling Units:

Single item

Single package size:

35X27X14 cm

Single gross weight:

15.000 kg

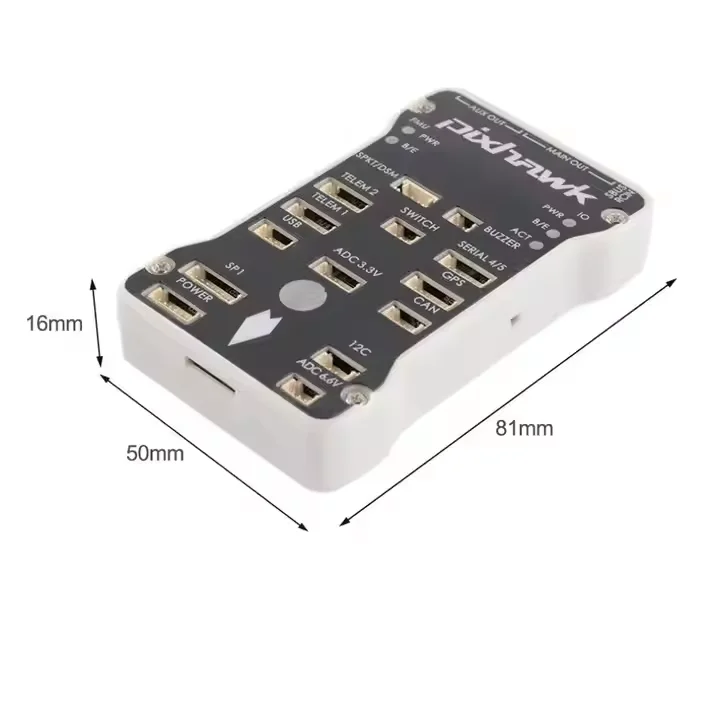

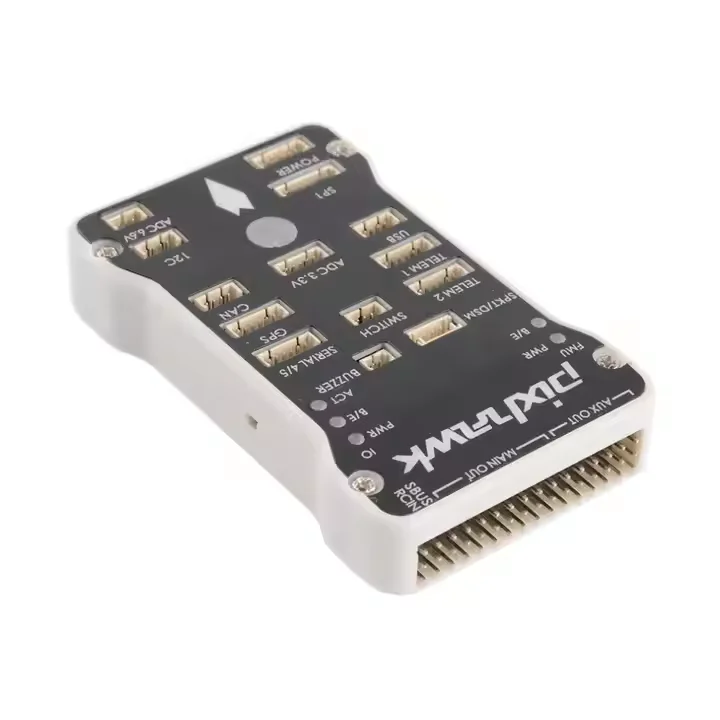

Details Images

Products Description

The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology

Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor

Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer

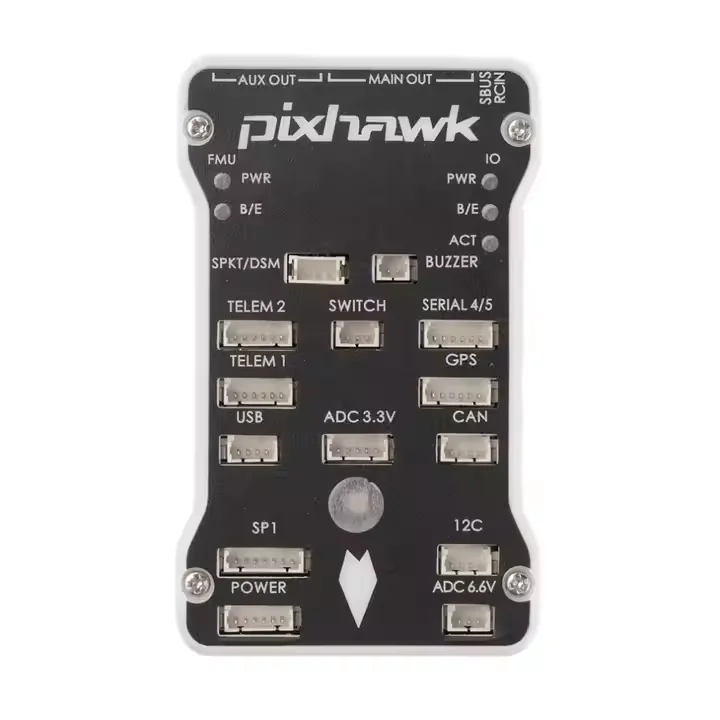

Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface

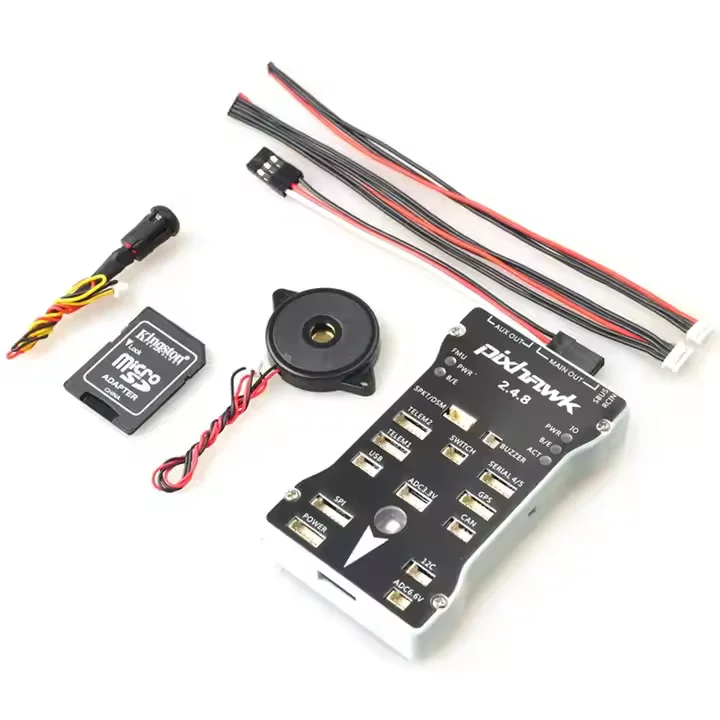

Package included:
- 1 x 2.4.8 Pixhawk main control
- 1 x Flight control shell
- 1 x Safety switch
- 1 x Buzzer
- 1 x 6pin to 6pin line
- 1 x 4Pin to 4Pin line
- 1 x 3pin DuPont line
- 1 x 1G SD Card
