SpeedyBee F405 V3/V4 3-6S Flight Controller Speedybee Stack

(0) 0 Reviews 0 Orders 0 Wish listed

$65.99

Quantity:

Total price :

(Tax : )

Key attributes

place of origin

Guangdong, China

brand name

Speedybee

model number

DV-SPB360

private mold

Product name

SpeedyBee F405 V3 Stacks

USB Port Type

Type-C

Barometer

Built-in

OSD Chip

AT7456E chip

BetaFlight Camera Control Pad

Yes(CC pad on the front side)

TVS Protective diode

Yes

ESC Telemetry

UART R5

Size

30.5 x 30.5mm

Dimension

45.6(L) * 44(W) * 15.8mm(H)

Weight

23.5g

Selling Units:

Single item

Single package size:

25X25X10 cm

Single gross weight:

5.000 kg

Products Description

SpeedyBee F405 V3 30x30 Flight Controller		SpeedyBee BLS 50A 30x30 4-in-1 ESC
MCU	STM32F405	Firmware	BLHeli_S J-H-50
IMU(Gyro)	BMI270	Continuous Current	60A * 4
USB Port Type	Type-C	Burst Current	80A(10 sec)
Barometer	Built-in	TVS Protective diode	Yes
OSD Chip	AT7456E chip	External Capacitor	1000uF Low ESR Capacitor(In the package)
Current Sensor Input	Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.	ESC Protocol	DSHOT300/600
RSSI Input	Supported. Named as RS on the front side.	Power Output	VBAT
Smart Port / F.Port	Not supported	ESC Telemetry	Not supported

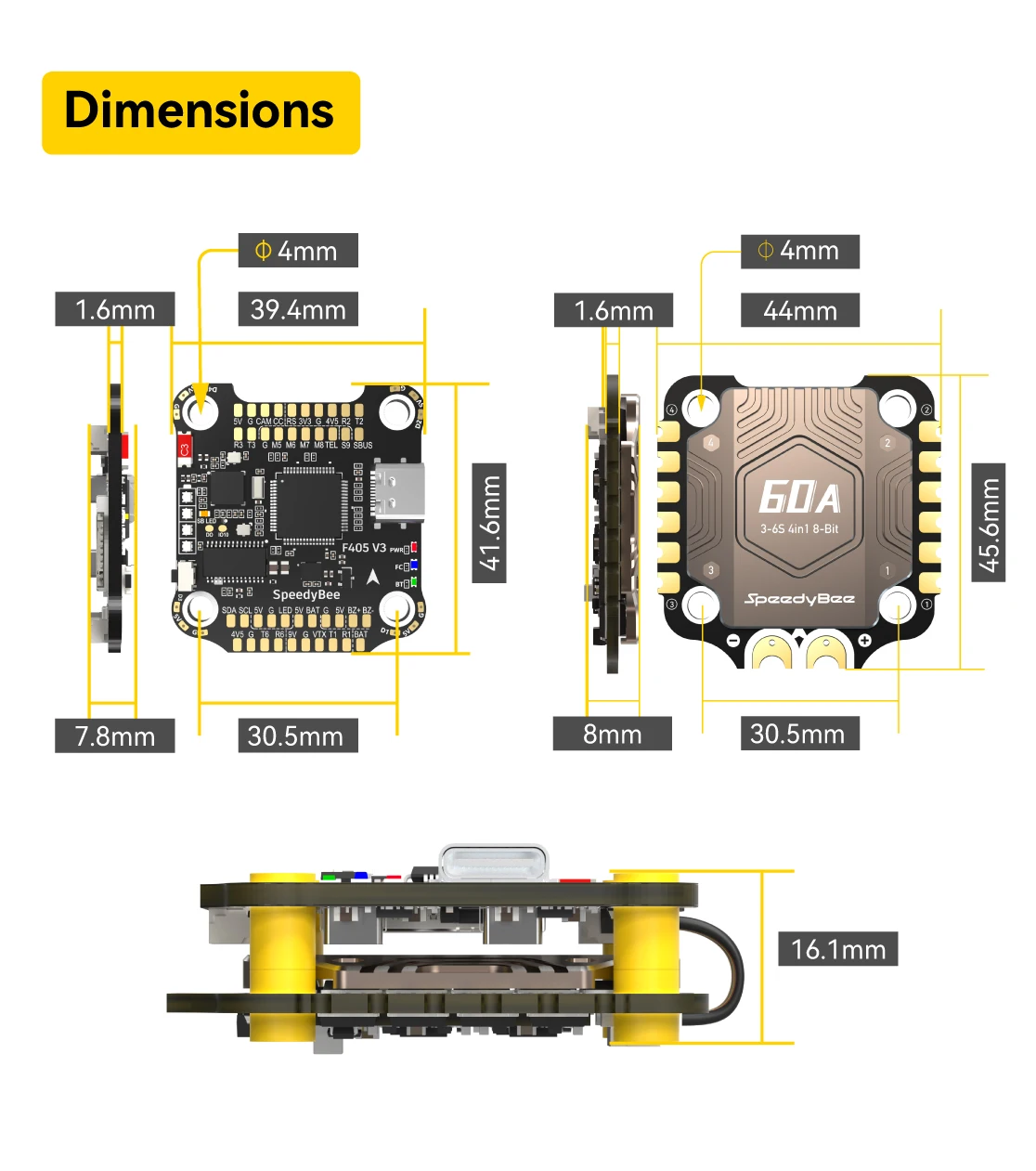

Firmware Target Name	SPEEDYBEEF405V3	Mounting	30.5 x 30.5mm( 4mm hole diameter)
Mounting	30.5 x 30.5mm( 4mm hole diameter)	Dimension	45.6(L) * 44(W) *8mm(H)
Dimension	41.6(L) x 39.4(W) x 7.8(H)mm	Weight	13.8g
Weight	9.6g
